Cooper Wiring Cooper Wiring TRAFGF20W


Description

Industry Description

AF/GF TR Duplex 20A 125V WH 4747700

AD Description

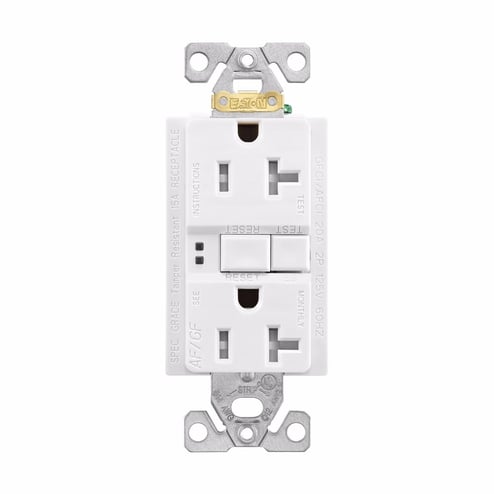

EATON TRAFGF20W Duplex Self-Test Tamper Resistant AFCI/GFCI Receptacle With Standard Size Thermoplastic Wallplate, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Vendor Description

Both arc fault protection and ground fault protection are required in kitchens and laundry areas according to the 2017 NEC, with expansion to further areas expected in coming code cycles. Eaton has long been a leader in ground fault and arc fault protection-both from the breaker and from the receptacle. Eaton AF/GF receptacle allows for local reset and provides protection from series arcs, parallel arcs and ground faults using Eaton 15 years of arc fault experience to help reduce the number of unwanted nuisance trips and self-test GFCI technology to ensure the proper operation of the protection circuitry.

Specifications

Amperage Rating
20 A
Application
AFCI
Country of Origin
CN
Dimensions
2.8150 X 2.0100 X 4.6250
Environmental_Conditions
Tamper resistant
Length1
2.8150
Special Features

  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Device self-tests periodically to ensure proper function of both the ground fault and arc fault protection elements
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Lockout functionality prevents mis-wired line load connections and GFCI/AFCI circuitry damage
  • Meets and exceeds 10 kA short circuit testing and UL 943 safety standards
  • OBC AF/GF receptacles also protect from upstream series arcs
  • Protects from both series and parallel arcs downstream from the outlet Branch circuit (OBC) AF/GF receptacle
  • Provides both arc fault protection per UL 1699A and ground fault protection per UL 943 in one convenient device
  • Tamper resistant shutters comply with 2014 NEC article 406.12
  • Tapered backwire openings handle multiple wire sizes and types for applications up to 10 AWG solid or stranded wire
  • Terminal screws are backed out and ready to wiring
  • Trip indicators make it easy to diagnose arc and ground faults
  • Visual indicator light provides quick visual reference of a tripped or "end of life" condition
  • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
Standard
CSA Certified,cULus Listed,UL Listed,NOM
Sub_Brand
Eaton Wiring Devices
Type
Commercial
Voltage Rating
125V
