Siemens Siemens 6SE64402UD318DA1


Description

Industry Description

WITHOUT AOP/BOP AMBIENT TEMP. -10 TO +50 DEG. C PROTECTION IP20 520 X 275 X 245(H X W X D) SQUARED TORQUE POWER 22 KW OVERLOAD 150% 60 S, 200% 3 S CONSTANT TORQUE POWER 18.5 KW 3AC 380-480 V +10/-10% 47-63 HZ WITHOUT FILTER MICROMASTER 440

Modified Industry Description

DR AC MM440 460V 3PU 25HP 38A

AD Description

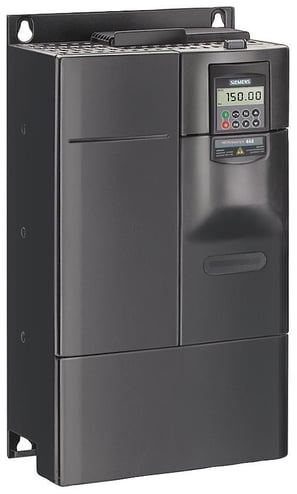

Siemens 6SE64402UD318DA1 Micromaster 440 Inverter Drive, 380 to 480 VAC, 38 A, 25 hp, 520 mm H x 275 mm W

Specifications

Amperage Rating
38
Country of Origin
DE
Horsepower
25
Length1
31.5000
Mounting_Type
Wall
Series
Micromaster 440
Special Features

  • -10 to 50 deg C ambient
  • 0.95 power factor
  • 0.96 efficiency
  • 14 to 122 deg F operating temperature
  • 150% output current for 60 sec, followed by 100% output current for 240 sec in a 300 sec cycle time high overload
  • 22 kW squared/18.5 kW constant torque power
  • 3 relay output, 2 analog output and 1 PTC/ KTY interface
  • 3-phase AC input, 3-phase AC output
  • 35 sq-mm motor end conductor cross section
  • 37 to 43 A input at 3-phase, 38 to 45 A output at 3-phase
  • 380 to 480 VAC 10/-10 % line voltage
  • 43 A/37 A rated input current, 45 A/38 A rated output current
  • 47 to 63 Hz line frequency, 4000 Hz pulse frequency
  • 6 standard digital inputs, 2 analog input
  • Compact housing as a result of high power density
  • Detachable operator panels
  • Easy cable connection, mains and motor connections are separated for optimum electromagnetic compatibility
  • Fan cooling
  • FSD frame size
  • Modular design
  • Screwless control terminals on detachable I/O board
  • Wall mount in clean environment or cubicle mount
  • Without AOP/BOP
  • Without filter
Voltage Rating
380 to 480
