Siemens Siemens 6SE64402UD311CA1


Description

Industry Description

WITHOUT AOP/BOP AMBIENT TEMP. -10 TO +50 DEG. C PROTECTION IP20 245 X 185 X 195(H X W X D) SQUARED TORQUE POWER 15 KW OVERLOAD 150% 60 S, 200% 3 S CONSTANT TORQUE POWER 11 KW 3AC 380-480 V +10/-10% 47-63 HZ WITHOUT FILTER MICROMASTER 440

Modified Industry Description

DR AC MM440 460V 3PU 15HP 26A

AD Description

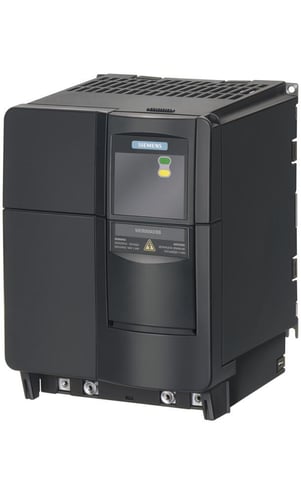

Siemens 6SE64402UD311CA1 Micromaster 440 Inverter Drive, 380 to 480 VAC, 26 A, 15 hp, 245 mm H x 185 mm W

Specifications

Amperage Rating
26
Country of Origin
GB
Horsepower
15
Length1
12.0900
Mounting_Type
Wall
Series
Micromaster 440
Special Features

  • -10 to 50 deg C ambient
  • 0.95 power factor
  • 0.96 efficiency
  • 10 sq-mm motor end conductor cross section
  • 14 to 122 deg F operating temperature
  • 15 kW squared/11 kW constant torque power
  • 150% output current for 60 sec, followed by 100% output current for 240 sec in a 300 sec cycle time high overload
  • 23.1 to 33.8 A output at 3-phase, 26 to 32 A input at 3-phase
  • 3 relay output, 2 analog output and 1 PTC/ KTY interface
  • 3-phase AC input, 3-phase AC output
  • 33.8 A/23.1 A rated input current, 32 A /26 A rated output current
  • 380 to 480 VAC 10/-10 % line voltage
  • 47 to 63 Hz line frequency, 4000 Hz pulse frequency
  • 6 standard digital inputs, 2 analog input
  • Compact housing as a result of high power density
  • Detachable operator panels
  • Easy cable connection, mains and motor connections are separated for optimum electromagnetic compatibility
  • Fan cooling
  • FSC frame size
  • Modular design
  • Screwless control terminals on detachable I/O board
  • Wall mount in clean environment or cubicle mount
  • Without AOP/BOP
  • Without filter
Voltage Rating
380 to 480
