Siemens Siemens 6SL32101SE141UA0

Siemens 6SL32101SE141UA0

Kirby Risk #: 3392142

UPC: 19169391535, 66264325871, 00662643258714

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Siemens

Description

Industry Description

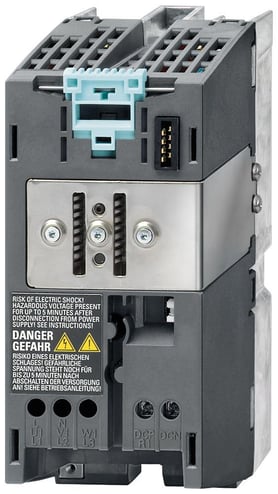

SINAMICS POWER MODULE PM340 INPUT 3AC 380-480V, 50/60HZ OUTPUT 3AC 4,1A (1,5KW)FRAME SIZE FSA INTERNAL AIR COOLING

Modified Industry Description

PM340_FSA_400V_4,1A_UFLT

AD Description

Siemens 6SL32101SE141UA0 SINAMICS S110 3-Phase Power Module, 380 to 480 VAC Input, 4.1/4.8 A Input, 8.2 A Output

Country of Origin	GB
Length1	8.0000
Special Features	2-protective earth connections 4.1 A rated current with integrated line reactor, 4.8 A rated current without integrated line reactor 4.5 A for S6 duty, 4.1 A IN, 3.6 A high overload, 8.2 A maximum output current Control circuit for the safe brake relay for controlling a holding brake Line connection Motor connection made with screw-type terminals or screw studs PM-IF interface for connection of the PM340 power module and CU310-2/SIMOTION D410-2 control unit or CUA31/CUA32 control unit adapter Terminals DCP/R1 and R2 for connection of an external braking resistor The PM340 power module also supplies power to the CU310-2/SIMOTION D410-2 control unit or CUA31/CUA32 control unit adapter by means of an integrated power supply Without integrated line filter
