Siemens Siemens HGB2B040B
Siemens HGB2B040B
Kirby Risk #: 3317636
UPC: 88762121966, 887621219666, 00887621219666
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED HGB FRAME WITH HIGH BREAKING CA PACITY. 40A 2-POLE (14KAICAT 600Y/347V) (35KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 2 x 5.4 x 2.8.
Modified Industry Description
BRKR HGB 40A 2P 480Y 35K LD LUG
AD Description

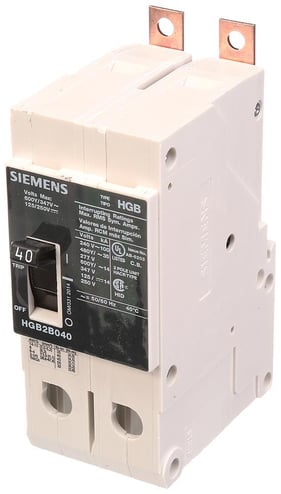

Siemens HGB2B040B Type HGB Low Voltage Molded Case Circuit Breaker, 480 VAC, 40 A, 35 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Specifications
| Amperage Rating |
40
|
|---|---|
| Application |
Industrial
|
| Connection |
LOW TAB PANELBOARD MOUNT
|
| Country of Origin |
MX
|
| Dimensions |
2.87 in L x 1.97 in W x 4.99 in H
|
| Frame |
HGB/125A
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
35
|
| Length1 |
4.6000
|
| Material |
MOLDED CASE CIRCUIT BREAKER
|
| Mounting_Type |
Panel
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
40DEGC
|
| Phase |
1
|
| Special Features |
|
| Standard |
UL/CSA/IEC/NOM
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
480
|
