Siemens Siemens LGB2B050B

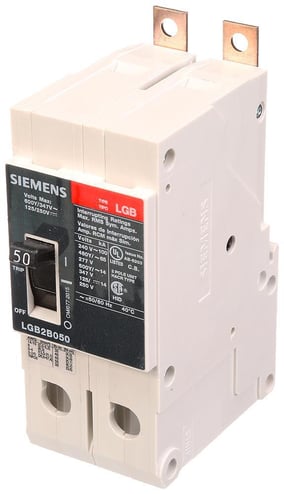

Siemens LGB2B050B
Kirby Risk #: 3314866
UPC: 88762122013, 887621220136, 00887621220136
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED LGB FRAME WITH VERY HIGH BREAKING CAPACITY. 50A 2-POLE (14KAIC AT 600Y/347V) (65KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD,LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x Hx D) IN 2 x 5.4 x 2.8.
Modified Industry Description
BRKR LGB 50A 2P 480Y 65K LD LUG
AD Description
Siemens LGB2B050B Low Voltage Molded Case Circuit Breaker, 480 VAC, 50 A, 65 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Specifications
| Amperage Rating |
50
|
|---|---|
| Application |
Industrial
|
| Connection |
LOW TAB PANELBOARD MOUNT
|
| Country of Origin |
MX
|
| Dimensions |
2.87 in L x 1.97 in W x 4.99 in H
|
| Frame |
GB
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
65
|
| Length1 |
6.0000
|
| Material |
MOLDED CASE CIRCUIT BREAKER
|
| Mounting_Type |
Panel/Bolt-On
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
40DEGC
|
| Phase |
1-Phase
|
| Special Features |
PANELBOARD MOUNT
|
| Standard |
UL/CSA/IEC/NOM
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
480
|
