TPI TPI P3P2630CA1


Description

Industry Description

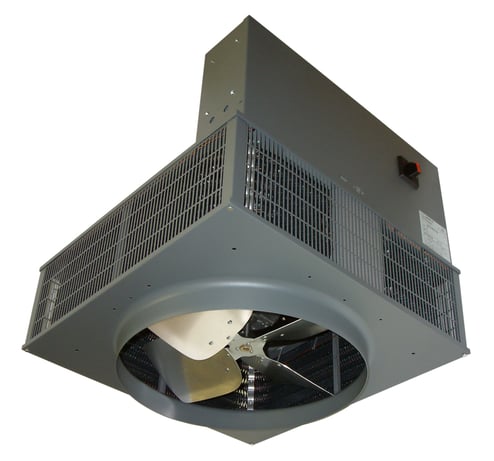

Downflow Unit Heater, 3 PH, 30KW, 480 V, Bracket Mounting, Steel Housing Material, Dimensions- 27 Width X 20-1/2 Height X 27 Depth IN, BTU Rating- 102390, 36.12 AMP, Epoxy Powder Coated Finish

AD Description

TPI P3P2630CA1 2600 3-Phase Standard Unit Heater, 30 kW, 480 VAC

Specifications

Application
Indoor-Commercial/Industrial-Downflow/High Bay Areas
Country of Origin
US
Dimensions
27 X 20-1/2 X 27
Length1
34.0000
Mounting
Bracket
Phase
3
Special Features

  • 1570 rpm max axial flow fan blade
  • 16 ga steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door
  • All 3-phase heaters shall have balanced phases
  • All models equipped with fan purge which allows fan to operate after elements are de-energized to purge residual heat
  • All units come equipped with manual reset limit controls to de-energize the heater should an over temperature situation occur
  • Corrosion resistant element with steel sheath and steel spiral fins
  • Elements shall consist of nickel-chromium alloy resistance wire embedded and completely surrounded in magnesium oxide, enclosed and swaged into corrosion resistant sheath
  • Equipped with in-built disconnect switch
  • Heaters shall be designed for a single supply circuit with elements, motor and control circuits subdivided and fused to conform with the latest National electric Code and OSHA requirements
  • Not recommended for mounting with threaded rod or chain
  • Overheat protection
  • Totally enclosed, 2-speed, 1-phase permanently lubricated and thermally protected motors with sleeve bearings on 24 to 50 kW models
  • Unit can be mounted using optional mounting bracket or field constructed angle iron bracket
Standard
ETLus Listed;OSHA
Type
Downflow
Voltage Rating
480
Wattage
30
