Siemens Siemens HGB1B015B
Siemens HGB1B015B
Kirby Risk #: 3308511
UPC: 88762121935, 887621219352, 00887621219352
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED HGB FRAME WITH HIGH BREAKING CA PACITY. 15A 1-POLE (14KAICAT 347V) (35KAIC AT 277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1Q1) WIRE RANGE 14 - 10 AWS (CU/AL). DIMENSIONS (W x H x D) IN 1 x 5.4x 2.8.
Modified Industry Description
BRKR HGB 15A 1P 277V 35K LD LUG
AD Description

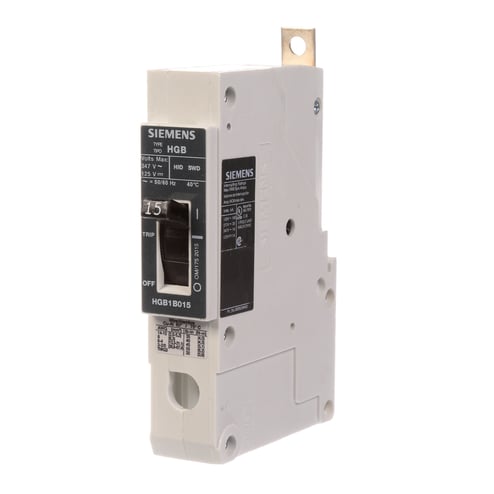

Siemens SpeedFax™ HGB1B015B Low Voltage Molded Case Circuit Breaker, 277 VAC, 15 A, 35 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Industrial
|
| Connection |
LOW TAB PANELBOARD MOUNT
|
| Country of Origin |
MX
|
| Dimensions |
2.87 in L x 0.97 in W x 4.99 in H
|
| Frame |
GB
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
35
|
| Length1 |
11.4500
|
| Material |
MOLDED CASE CIRCUIT BREAKER
|
| Mounting_Type |
Panel
|
| Number_Of_Poles |
1
|
| Operating_Temperature |
40DEGC
|
| Phase |
1-Phase
|
| Special Features |
|
| Standard |
UL/CSA/IEC/NOM
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
277
|
