NSI NSi 8001U

Name: NSi 8001U
Brand: NSI
SKU: 3308067
Price: 781.29 USD
Availability: InStock

NSI 8001U

Kirby Risk #: 3308067

UPC: 78626170003, 786261700032, 00786261700032

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: NSI

Description

Industry Description

24 Hour Cycle Timer 20A 480V SPDT Indoor Metal Enclosure

AD Description

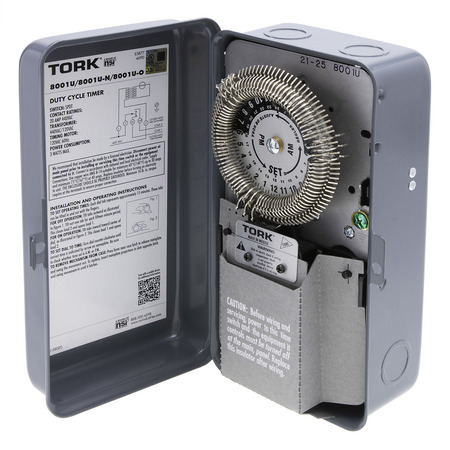

NSI Tork® 8001U 8000 Duty Cycle Skip-A-Day ON/OFF Mechanical Time Switch, 24 hr Setting, 120 to 480 VAC, 0.75 hp, SPDT Contact, 1 Poles

Action	SPDT
Amperage Rating	20
Application	Duty Cycling-Verntilating Fans-Pumping-Irrigation-Process Control-Laboratory Control
Base	Screw
Country of Origin	USA
Dimensions	4.687 in L x 2.937 in W x 7.937 in H
Enclosure	NEMA 1 Metal Indoor
Environmental_Conditions	-40 to 165 F
Frequency_Rating	60 Hz
Horsepower	0.75
Length1	3.7500
Mounting	Screw Mount
Mounting_Type	Threaded
Number_Of_Poles	1
Operating_Temperature	-40 to 165 F
Phase	Single Phase
Series	8000
Size	L=4.687 - H=7.937 - W=2.937
Special Features	14 to 8 AWG terminal range 3 or 5 W power consumption 60 Hz frequency Adjustable from 1/2, 1, 2, 3, 4, 6, 12 and 24 hr Dial has 96 captive tabs Lockable hasp enclosure Metal indoor enclosure Minimum On setting is 15 min with minimum Off setting at 15 min Some models include 7 days or 14 days wheel to omit selected days of the week Skip-A-Day
Standard	UL-CSA
Sub_Brand	Mechanical Time Controls
Temperature_Rating	-40 to 165
Type	Duty Cycle Skip-A-Day On/Off
Voltage Rating	120 to 480
