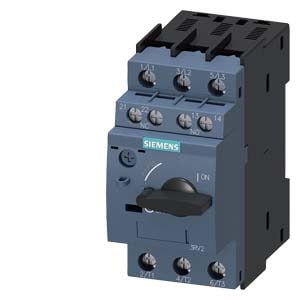

Siemens Siemens 3RV20211GA15
Siemens 3RV20211GA15
Kirby Risk #: 3306314
UPC: 47621003276, 88762188360, 00887621883607
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
Circuit-breaker sz s0, for motor protection, class 10, a-rel. 4.5...6.3a, n-rel. 82a screw connection, standard sw. capacity w. transverse aux. switch 1NO+1NC
Modified Industry Description
MSP S0 4.5-6.3A SCRW W/AUX 1NO/1NC
AD Description
SIRIUS 3RV20211GA15 Motor Protection Circuit Breaker With 1NO-1NC Transverse Auxiliary Switch, 690 VAC, 4.5 to 6.3 A, 4 kA Interrupt, 3 Poles, Magnetic Trip
Vendor Description
The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.
Specifications
| Amperage Rating |
4.5 to 6.3
|
|---|---|
| Country of Origin |
DE
|
| Dimensions |
97 mm H x 45 mm W x 96 mm D
|
| Frame |
S0
|
| Frequency_Rating |
50 to 60
|
| Interrupt_Rating |
4
|
| Length1 |
2.0480
|
| Mounting_Type |
DIN Rail
|
| Number_Of_Poles |
3
|
| Phase |
3
|
| Power_Rating |
4
|
| Series |
3RV2
|
| Special Features |
|
| Temperature_Rating |
-20 to 60
|
| Voltage Rating |
690
|
