Kichler Kichler 6DD24V060WH


Description

Modified Industry Description

60W 24V WHITE LED DRIVER AND DIMMER

AD Description

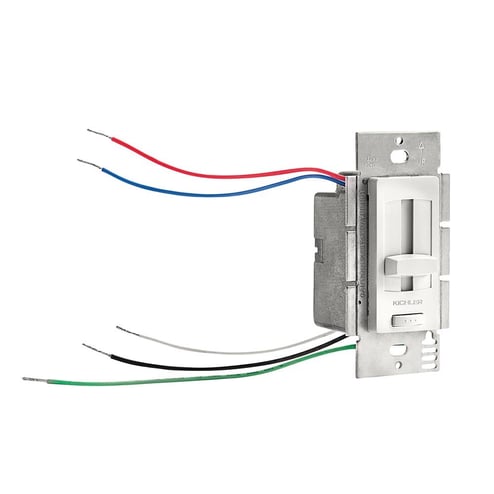

Kichler® 6DD24V060WH Constant Voltage LED Driver With Integrated Dimmer, 120 VAC, 2.5 A, 1 Pole, On/Off Operation, White

Vendor Description

The Kichler® LED driver + dimmer simplifies installation and system compatibility by integrating the driver with the dimmer switch. This two in one product can convert 120 VAC to 24 VDC, as well as dim from 100% to 1%. Simply connect to both your high voltage input and low voltage output and install with a standard single gang box to the wall to power Kichler® 24 VAC led tape and hard strips.

Specifications

Brand Name
Kichler
Color
White
Country of Origin
CHN
Lamp_Type
LED
Material
Aluminum
Number_Of_Channels
120
Processor
24
Special Features

  • Adjustable voltage output dial to address voltage drop
  • Fits in a standard recessed electrical box (gang box)
  • Includes voltage barrier partition to install high and low voltage circuit in same gang box
  • LED driver plus dimmer in one physical unit
  • No derating required in multi-gang installations
  • Power failure memory if power is interrupted, the LED driver plus dimmer returns to its prior setting
  • Pre-set dimmer with On/Off push switch offers excellent dimming performance 100% to 1%
  • Simplifies LED installation by eliminating compatibility issues between driver and dimmer
Standard
CSA UL Listed Dry
Sub_Brand
LED Power Supply 24V
Type
LED Driver and Dimmer
Voltage Rating
120
Wattage
60
