SolaHD SolaHD SDUCFRELAYCARD
SolaHD SDUCFRELAYCARD
Kirby Risk #: 3301651
UPC: 78347201295, 783472012954, 00783472012954
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: SolaHD
Description
Industry Description

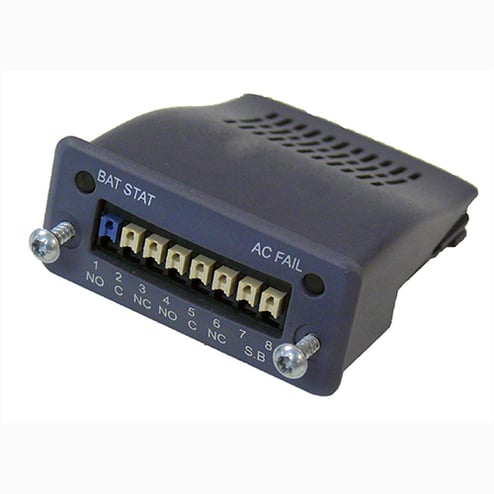

Compact Flash Dry contact digital I/O card, push in button secure clamp terminals, wire size range 16-24 AWG, Relay contact signal for "On Battery", "Low Battery", and "UPS Stand by" Modes
Specifications
| Amperage Rating |
1
|
|---|---|
| Application |
Programmable Logic Controllers, Factory Automation, Robotics, Conveying Equipment, Computer-based Control Systems
|
| Country of Origin |
SE
|
| Enclosure |
LCP (Liquid Crystal Polymer), Natural, Thermoplastic, UL 94 V-0
|
| Environmental_Conditions |
0 to 90 Relative Humidity
|
| Frequency_Rating |
50/60
|
| Length1 |
2.8000
|
| Mounting |
Compact Flash Connector, Card
|
| Special Features |
LED Diagnostics, Relay Actived low via normally open momentary switch
|
| Standard |
Emission EN 61000-6-4 EN55016-2-3 Radiated emission EN55022 Conducted emission
|
| Voltage Rating |
3.3
|
