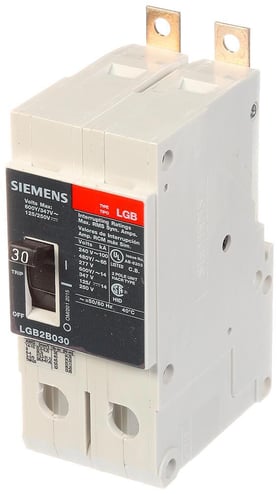

Siemens Siemens LGB2B030B


Description

Industry Description

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED LGB FRAME WITH VERY HIGH BREAKING CAPACITY. 30A 2-POLE (14KAIC AT 600Y/347V) (65KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD,LOAD SIDE LUGS ONLY (TC1Q1) WIRE RANGE 14 - 10 AWS (CU/AL). DIMENSIONS (W x H xD) IN 2 x 5.4 x 2.8.

Modified Industry Description

BRKR LGB 30A 2P 480Y 65K LD LUG

AD Description

Siemens LGB2B030B Type LGB Low Voltage Molded Case Circuit Breaker, 480 VAC, 30 A, 65 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Specifications

Amperage Rating
30
Application
Industrial
Connection
LOW TAB PANELBOARD MOUNT
Country of Origin
MX
Dimensions
2.87 in L x 1.97 in W x 4.99 in H
Frame
LGB/125A
Frequency_Rating
50/60
Interrupt_Rating
65
Length1
4.1500
Material
MOLDED CASE CIRCUIT BREAKER
Mounting_Type
Panel
Number_Of_Poles
2
Operating_Temperature
40DEGC
Phase
1
Special Features

  • 14 to 6 AWG copper, 12 to 10 AWG aluminum wire range
  • The GB circuit breaker includes the same design features as the GG except the line end of the breaker is configured for panelboard mounting applications and it is without some of the global markings
Standard
UL/CSA/IEC/NOM
Temperature_Rating
40
Type
Low Voltage
Voltage Rating
480
