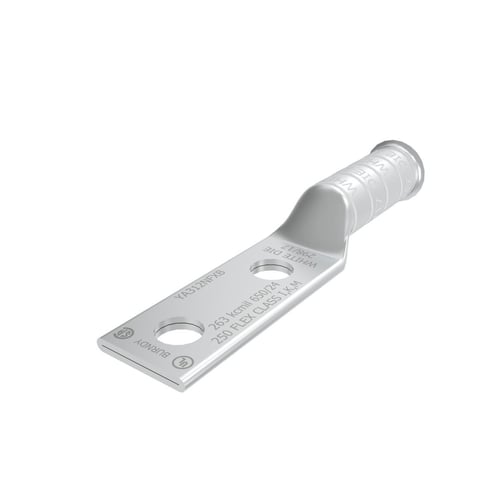

Burndy Burndy YA312NFXB


Description

Industry Description

Copper Compression Lug, 2 Hole w/o Inspection Window, 250 Flex, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Tin Plated.

AD Description

BURNDY® HYLUG YA312NFXB 2-Hole Compression Lug, 250 kcmil Copper Conductor, Die Code: 17, 1/2 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Specifications

Application
For Flex Conductor
Country of Origin
US
Length1
5.8500
Material
Copper
Special Features

  • 250 kcmil flex Class H, I, G, M, 263 kcmil, 650/NO24 DLO conductor
  • Electro tin plated
  • For die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, (4) W30VT die, hydraulic: BCT500HS, Y500CTHS tool, (4) W30VT, W30RT die, Y35, Y39, Y750, PAT750 tool, (4) U30RT die, Y46 tool, (4) U30RT die with PUADP-1 adapter, dieless tools (number of crimps): (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool
  • Without inspection window
Standard
UL 486A-486B
Sub_Brand
HYLUG
Type
Long Barrel, Tin Plated
Voltage Rating
35,000
