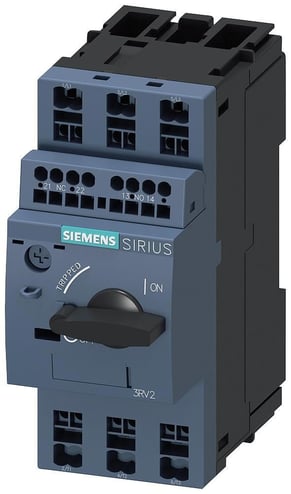

Siemens Siemens 3RV20110GA25
Siemens 3RV20110GA25
Kirby Risk #: 3299234
UPC: 11209840966, 66264392161, 00662643921618
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
Circuit-breaker sz s00, for motor protection, class 10, a-rel. 0.45...0.63a, n-release8.2a spring-l. connection standard sw. capacity w. transverse aux. switch1NO+1NC
AD Description
SIRIUS 3RV20110GA25 Motor Protection Circuit Breaker With 1NO-1NC Transverse Auxiliary Switch, 690 VAC, 0.45 to 0.63 A, 100 kA Interrupt, 3 Poles, Magnetic Trip
Vendor Description
The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.
Specifications
| Amperage Rating |
0.45 to 0.63
|
|---|---|
| Country of Origin |
DE
|
| Dimensions |
106 mm H x 45 mm W x 96 mm D
|
| Frame |
S00
|
| Frequency_Rating |
50 to 60
|
| Interrupt_Rating |
100
|
| Length1 |
4.7300
|
| Mounting_Type |
DIN Rail
|
| Number_Of_Poles |
3
|
| Phase |
3-Phase
|
| Power_Rating |
250
|
| Series |
3RV2
|
| Special Features |
|
| Temperature_Rating |
-20 to 60
|
| Voltage Rating |
690
|
