Hubbell Building Automation Hubbell Building Automation CX082S082NM


Description

Industry Description

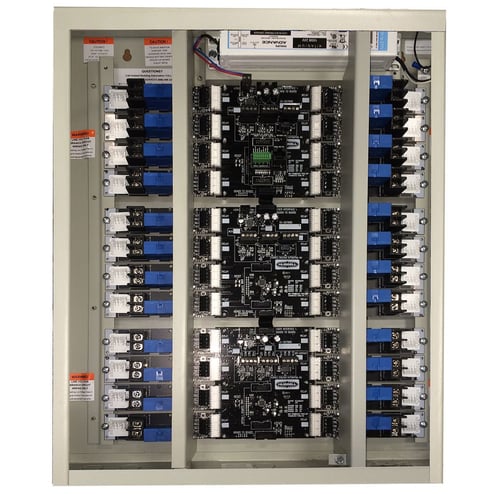

CX Lighting Control Panel, Number of Panel Spaces: 8, Number of Relays: 8, Relay Type: 20A 1-Pole Electrically HeldN.O. 120-277V 14KSCCR @ 277VAC, Voltage Rating: 120-277 V, Enclosure Type: NEMA 1 Surface, Options: Master Pane.

AD Description

Hubbell Control Solutions CX082S082NM Control Panel, 120 to 277 VAC, 20 A, 1 Pole

Specifications

Amperage Rating
20
Application
Commercial lighting spaces
Color
Gray
Country of Origin
MX
Dimensions
17 in L x 14-1/2 in W x 4 in D
Enclosure
NEMA 1 Surface
Environmental_Conditions
Indoor Only
Length1
15.0000
Mounting
Pre-drilled mounting holes for mounting to wall
Mounting_Type
Surface
Number_Of_Poles
1
Series
CX Series
Special Features

  • 0 to 50 deg C operating temperature
  • 10 to 90% non-condensing relative humidity
  • 12 programmable dry contact inputs for 8 relay panel
  • 365 day programming with 64 schedules
  • Astronomical and real time clock
  • Fully programmable by users with door closed and locked
  • LCD user interface with keypad
  • Master control panel
  • Pre-drilled mounting holes for mounting to wall
  • Program uploads via removable SD memory card
  • Programmable inputs accept low voltage switches, photocells or motion sensors
  • Programmable via user interface mounted on door
  • Selectable pre-programmed scenarios
  • Two low voltage dry contact output relays on 8 relay panel
Standard
Listed To UL916 Standard And cUL
Temperature_Rating
0 to 50
Type
Controls
Voltage Rating
120 to 277
