Siemens Siemens LGB3K125B

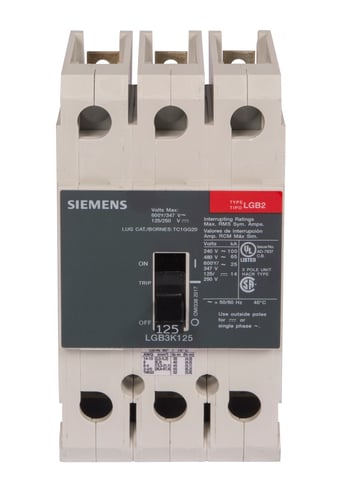

Siemens LGB3K125B
Kirby Risk #: 3297810
UPC: 80476634046, 804766340468, 00804766340468
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED LGB2 FRAME WITH VERY HIGH BREAKING CAPACITY. 125A 3-POLE (14KAIC AT 600Y/347V) (65KAIC AT 480V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.
AD Description
Siemens LGB3K125B Low Voltage Molded Case Circuit Breaker, 480 VAC, 125 A, 14 to 65 kA, 3 Poles, Thermal Magnetic Trip
Specifications
| Amperage Rating |
125
|
|---|---|
| Application |
Circuit Protection
|
| Country of Origin |
MX
|
| Dimensions |
5.4 in H x 3 in W x 2.8 in D
|
| Frame |
GB
|
| Interrupt_Rating |
14 to 65
|
| Length1 |
5.2000
|
| Mounting_Type |
Panel
|
| Number_Of_Poles |
3
|
| Special Features |
LGB 125A 480V Breakers
|
| Standard |
UL/CSA/IEC/NOM
|
| Sub_Brand |
Siemens
|
| Temperature_Rating |
40
|
| Type |
Low Voltage
|
| Voltage Rating |
480
|
