Hubbell Hubbell HBLDS3SSP
Hubbell HBLDS3SSP
Kirby Risk #: 3295714
UPC: 78358536515, 00783585365152
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

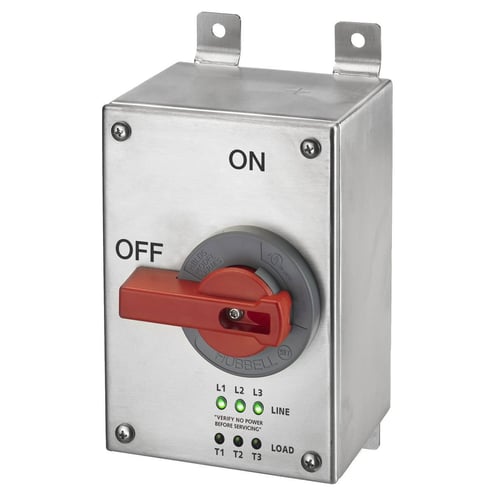

Hubbell Wiring Device Kellems, Disconnect Switches, Unfused, 30A 600VAC, 3-Pole, NEMA 4X, Stainless Steel, With LED Lights
AD Description
Wiring Device-Kellems Circuit-Lock® inSIGHT™ HBLDS3SSP Square Top Standard Unfused Enclosed Disconnect Switch With LED Indicator, 600 VAC, 30 A, 15 hp, 3 Poles
Vendor Description
Hubbell® new 30 A Circuit-Lock® Disconnect with integral phase indication LEDs redefines the benchmark for safety by providing insight into the enclosure while in use. Six highly visible LEDs (3 line side/3 load side) communicate the electrical status of the switch by phase. This voltage detection feature significantly improves existing safety and maintenance procedures by visually providing personnel critical information prior to removing the enclosure cover, e.g. a welded contact or dropped phase.
Specifications
| Application |
Motor Control
|
|---|---|
| Connection |
Pressure Screw Terminals
|
| Country of Origin |
PL
|
| Length1 |
10.2000
|
| Mounting |
Screw Mount
|
| Number_Of_Poles |
3
|
| Series |
Non-Fused
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL2238 and UL50
|
| Sub_Brand |
Motor Starting/Disconnect Switches
|
| Type |
Unfused
|
| Voltage Rating |
600
|
