Panduit Pan-Net Panduit Pan-Net UTP28X20BU


Description

Industry Description

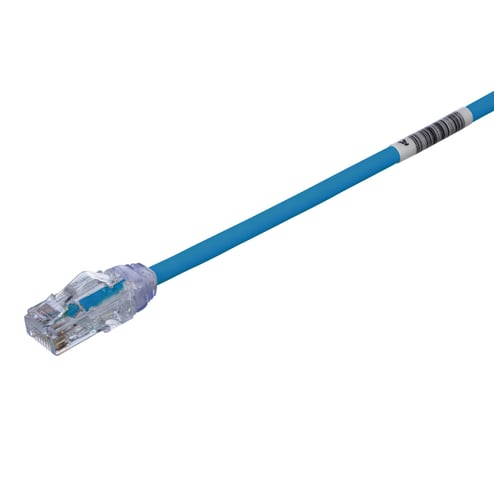

Category 6A Performance, 28AWG, UTP Patch Cord, CM/LSZH, Blue, 20ft.

Modified Industry Description

CAT6A,28AWG,UTP,PC,CM/LSZH,BU,20FT,

AD Description

Panduit® PanNet® TX6A-28™ UTP28X20BU Class EA Small Diameter Patch Cord, Cat 6A, 28 AWG F/UTP Solid Copper Conductor, RJ45 Modular Plug Connector, 20 ft L Cord

Vendor Description

Cat 6A/class EA, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, solid copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. patch cords are offered in multiple lengths and colors for design flexibility.

Specifications

Application
(1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing.
Color
Blue
Conductor Type
F/UTP Solid Copper
Conductor Size
28
Country of Origin
MUL
Length1
9.5500
Material
Copper
Number Of Conductors
RJ45 8(8)
Outside_Diameter
0.185
Plug_Type
Modular Plug
Series
UTP28X
Special Features

  • 0.19 in OD
  • 100% performance tested for wire map, next and return loss
  • Centered de-embedded plug
  • Integral pair manager - optimizes performance and consistency by reducing untwist at plug
  • Patented tangle free latch - prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes
  • Robust construction - plug contact plated with 50 u-in of gold and rated to 2500 mating cycles
  • Smaller diameter, flexible cable design
  • UL 94V-0 rated clear polycarbonate housing plug
Standard
Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/
Sub_Brand
Pan-Net?®
Temperature_Rating
14 to 167
Type
Class EA Small Diameter
