Panduit Pan-Net Panduit Pan-Net UTP28X15YL
Panduit Pan-Net UTP28X15YL
Kirby Risk #: 3286708
UPC: 07498308459, 074983084593, 00074983084593
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description
Category 6A Performance, 28AWG, UTP Patch Cord, CM/LSZH, Yellow, 15ft.
Modified Industry Description
CAT6A,28AWG,UTP,PC,CM/LSZH,YL,15FT,
AD Description

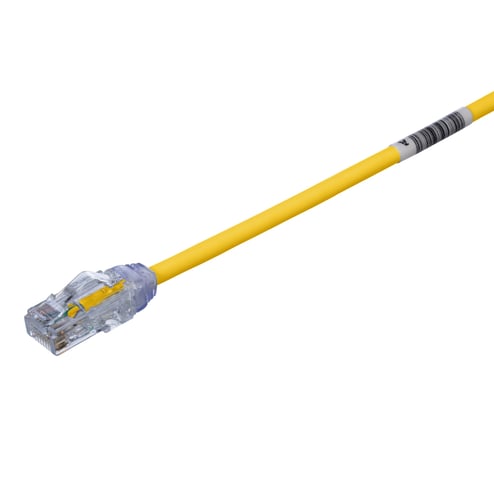

Panduit® PanNet® TX6A-28™ UTP28X15YL U/UTP Small Diameter Patch Cord, Cat 6a Category, 28 AWG Solid Copper Conductor, RJ45 Connector, 15 ft L Cord
Vendor Description
Category 6A/Class EA, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, solid copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Specifications
| Application |
(1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing.
|
|---|---|
| Color |
Yellow
|
| Conductor Type |
Solid Copper
|
| Conductor Size |
28
|
| Country of Origin |
MUL
|
| Length1 |
9.0000
|
| Material |
Copper
|
| Number Of Conductors |
RJ45 8(8)
|
| Outside_Diameter |
0.185
|
| Plug_Type |
Modular Plug
|
| Series |
UTP28X
|
| Special Features |
|
| Standard |
Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/
|
| Sub_Brand |
Pan-Net?®
|
| Temperature_Rating |
14 to 140
|
| Type |
U/UTP Small Diameter
|
