Southwire Tool Southwire Tool 23070T
Southwire Tool 23070T
Kirby Risk #: 3284281
UPC: 03288695768, 032886957680, 00032886957680
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire Tool
Description
Industry Description

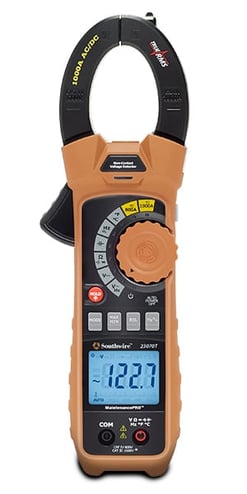

The MaintenancePRO™ 23070T clamp meter is a rugged high end AC/DC clamp meter for the serious electrician who needs both AC and DC current measurements. With a UL listed safety rating of CAT IV 600V / CAT III 1000V, this clamp meter is built to get the tough jobs done. Plus, added features like an easy to read 6,000 count backlit display and a built in non-contact AC voltage detector makes the 23070T the new standard residential, commercial, and maintenance AC/DC clamp meters.
Modified Industry Description
1000 Amp AC/DC Clamp Meter Flashlight
Specifications
| Amperage Rating |
1000 AC/DC
|
|---|---|
| Application |
11 Measuring functions
|
| Brand Name |
Southwire Tool
|
| Country of Origin |
CH
|
| Dimensions |
10.3 in H x 3.3 in W x 1.7 in D
|
| Diode_Test |
True
|
| Frequency_Rating |
10
|
| Number_Of_Digits |
4
|
| Operating_Temperature |
41 to 104
|
| Package_Quantity |
1
|
| Peak_Hold |
True
|
| Power_Source |
9 V Battery
|
| Resistance |
60
|
| Safety_Rating |
CAT IV 600 V/CAT lll 1000 V
|
| Special Features |
|
| Type |
Auto-Ranging
|
| Voltage Rating |
1000 AC/DC
|
| Width_2 |
45.7680
|
