Southwire Tool Southwire Tool 13070T
Southwire Tool 13070T
Kirby Risk #: 3284276
UPC: 03288696328, 032886963285, 00032886963285
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire Tool
Description
Industry Description

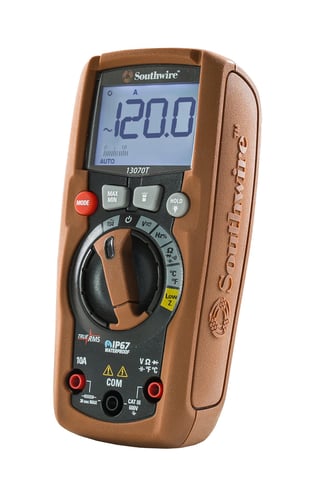

With 11 measurement functions, True RMS readings, a Low Z measurement function, and a rugged waterproof and dust proof housing, this compact multimeter has the features needed to get the job done. A built-in flashlight provides added convenience.
Modified Industry Description
600 Volt Cat III Multimeter
Specifications
| Accuracy |
+/-1.5% + 10 Digits/1.2% + 5 Digits
|
|---|---|
| Amperage Rating |
10
|
| Application |
AC Readings
|
| Battery |
AAA
|
| Battery_Type |
AAA
|
| Brand Name |
Southwire Tool
|
| Capacitance |
4000
|
| Country of Origin |
CH
|
| Dimensions |
5.8 in H x 2.7 in W x 2 in D
|
| Diode_Test |
True
|
| Enclosure |
Hard Plastic
|
| Frequency_Rating |
10
|
| Measuring_Range |
4 to 600 VAC/400 mV to 600 VDC/4 to 10 A/400 Ohm to 40 MOhm/40 nF to 4000 uF/9.999 Hz to 9.999 MHz
|
| Number_Of_Batteries |
3
|
| Number_Of_Digits |
4
|
| Package_Quantity |
1.000
|
| Peak_Hold |
True
|
| Resistance |
40
|
| Resolution |
1
|
| Safety_Rating |
CAT lll 600 V
|
| Special Features |
|
| Temperature_Rating |
32 to 122
|
| Type |
Auto-Ranging
|
| Voltage Rating |
600
|
| Width_2 |
45.7772
|
