Siemens Siemens 6EP13315BA10

Siemens 6EP13315BA10

Kirby Risk #: 3281908

UPC: 04089273271, 25515152606, 00040892732719

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Siemens

Description

Industry Description

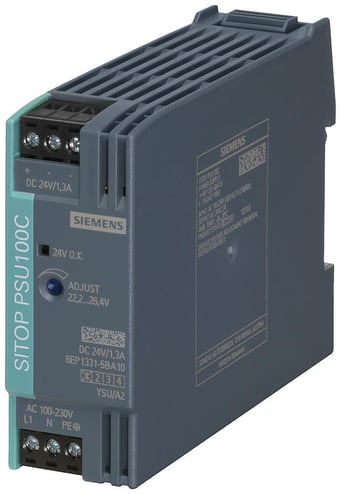

SITOP PSU100C 24 V/1.3 A STABILIZED POWER SUPPLY INPUT AC 120-230 V OUTPUT DC 24 V1.3 A

Modified Industry Description

POWER SUPPLY, SITOP PSU100C 24

AD Description

Siemens 6EP13315BA10 SITOP PSU100C 1-Phase Stabilized Power Supply, 120 to 230 VAC Input, 24 VDC Output, 31.2 W Power Rating, 1.3 A, DIN Rail Mount

Amperage Rating	1.3
Application	Power supply SITOP PSU100C
Country of Origin	RO
Environmental_Conditions	-20 to 70
Frequency_Rating	47 to 63
Insulation	IP20
Length1	4.4500
Mounting	Snaps onto DIN rail EN 60715 35x7.5/15
Mounting_Type	DIN Rail
Phase	1-phase AC or DC
Power_Rating	31.2
Series	SITOP PSU100C
Special Features	0.63 A at 100 VAC, 0.31 A at 230 VAC input, 1.3 A output 1-phase wide range input for 85 V to 264 VAC and 110 to 300 VDC Adjustable output voltage Green LED for output voltage High degree of efficiency over the entire load range, up to 28% energy savings compared to comparable units Low energy consumption in no load operation and stand-by, possible energy savings of up to 53% Small mounting area thanks to narrow design The SITOP compact 1-phase power supplies are slim, space saving power supplies for the low-end performance range They are characterized by their low power loss They are used for distributed applications in switchboxes or in small control cabinets
Standard	Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310); IECEx Ex nA IIC T4 Gc; ATEX (EX) II 3G Ex nA IIC T4; cCSAus (CSA C22.2 No. 213, ANSI/ISA-12.12.01) Class I, Div. 2, Group ABCD, T4
Sub_Brand	Power supply
Type	1-Phase Stabilized
Voltage Rating	24
Wattage	31.2
