Appleton Appleton AMLHL1CG6BH


Description

Industry Description

AREAMASTER HIGH LUMEN FLOOD, ENCLOSED AND GASKETED, 24K LUMEN, 5000K CCT, CLEAR GLASS, NEMA 7X7, 347-480VAC

AD Description

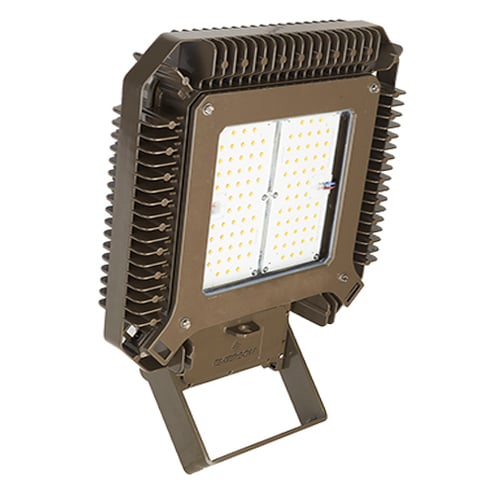

Appleton® Areamaster™ II AMLHL1CG6BH Enclosed Gasketed Floodlight Fixture,) LED Lamp, 180 W Fixture, 347/480 VAC, Architectural Bronze Polyester Coated Housing

Vendor Description

Areamaster™ generation 2 HL LED luminaires deliver best-in-class LED performance. The redesigned Areamaster™ provides greater versatility, with models from 24000 to 38000 lumens and a choice of beam patterns to meet your diverse floodlighting needs. Featuring new optic designs for superior uniformity and coverage, the Areamaster™ generation 2 HL LED luminaires provide HID equivalent lighting that saves over 75 percent in energy costs and practically eliminates maintenance burdens. They are certified for class I, division 2 and class II hazardous locations and rated for use in NEC and CEC installations.

Specifications

Application
FLOOD
Color
Bronze
Country of Origin
MX
Lamp_Type
LED
Length1
19.7000
Lumens
24k
Mounting
Yoke
Size
18.67X15.94X5.13
Special Features

  • Captive fasteners secure one-piece lens
  • Choice of optics for optimal light distribution in a variety of applications
  • Field replaceable LED driver and lens cover
  • Heavy duty, high temperature silicone rubber gaskets
  • Rugged and compact housing with superior thermal design translates to long luminaire life
  • Separate field wiring compartment with screw terminal block for easy and secure connection
  • Standard 6 kV surge protection
  • Thermal shock and impact resistant clear or frosted glass lens
  • Three lumen outputs provide up to 38000 lumens
  • Two 3/4 in NPT entries provided
  • Yoke bracket is designed to accommodate traditional Areamaster™ brackets and slip fitters for easy retrofit

Standard
NEC/CEC, IECEx, ATEX
Sub_Brand
Areamaster II HL LED
Type
Hazardous
Voltage Rating
347-480Vac 50/60Hz
Wattage
180
