Burndy Burndy YCA321R2N
Burndy YCA321R2N
Kirby Risk #: 3273727
UPC: 78181081073, 781810810736, 00781810810736
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description
AL compression lug designed for terminating jumper loop and equiptment taps to switch pads and other substation switch yard apparatus, 6.95 IN L.
AD Description

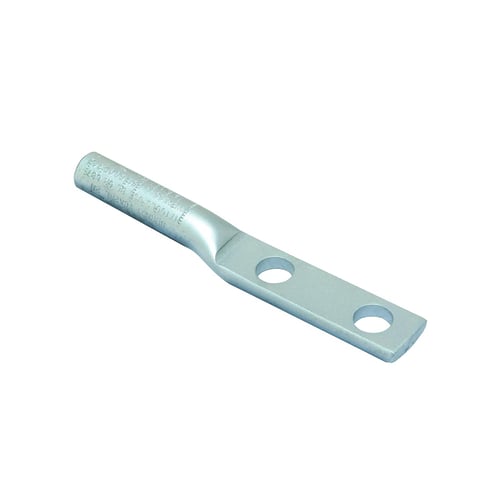

BURNDY® HYLUG YCA321R2N YCA-R-N 2-Hole Compression Lug, 336 kcmil Aluminum Conductor, Die Code: 321, 9/16 in Stud, Aluminum
Vendor Description
BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY® oxide inhibiting compound.
Specifications
| Application |
Used for terminating jumper loops and equipment taps at switchpads and other substation apparatus, or to YDW-R deadends.
|
|---|---|
| Country of Origin |
US
|
| Length1 |
6.9500
|
| Material |
Aluminum
|
| Special Features |
|
| Sub_Brand |
COMPRESSION TERMINAL
|
| Type |
YCA-R-N
|
