Hubbell Hubbell USB15AC5W
Hubbell USB15AC5W
Kirby Risk #: 3271393
UPC: 88377830717, 883778307171, 00883778307171
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

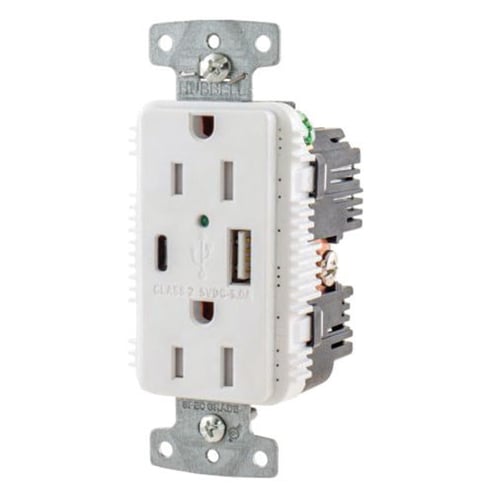

Hubbell Wiring Device Kellems, USB Charger Duplex Receptacle, 15A 125V,2-Pole 3-Wire Grounding, 5-15R, 1) 5A "C" USB and "A" Ports, White
Modified Industry Description
15A 120V - WHITE A AND C PORT USB CHARGER DUPLEX RECEPTACLES
AD Description
Wiring Device-Kellems tradeSELECT® USB15AC5W Duplex Grounding Heavy Duty Tamper Resistant Standard USB Charger Receptacle With Green LED, 15 A, 125 VDC, 1 Phase, 2 Poles, 3 Wires, White
Vendor Description
Hubbell® USB chargers are available in the new Type-C port, a combination unit with type A and C and the legacy type A, all with more power. The increase in power to a 5 Amp 5 VAC USB port adds capacity so that there is always ample current to support multiple device charging. Portable mobile manufacturers are using the faster Type-C ports. More phones, tablets and other electronic devices are expected to use this new standard.
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
USB Charging/Power
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Terminal Screws
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
5-15R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
1
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL/CSA
|
| Sub_Brand |
USB Chargers
|
| Type |
USB and Power
|
| Voltage Rating |
125
|
| Wattage |
1875
|
