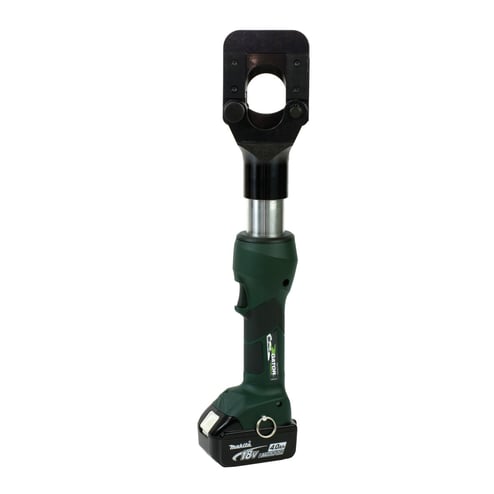

Greenlee Greenlee ESG45LX120


Description

Industry Description

Gator® ESG45L Battery Powered Cable Cutter with 120V AC Adapter. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Designed specifically to cut ACSR, guy strand and ground rods. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Retraction Stop allows the operator to stop the ram retraction at any point simply by tapping the trigger, and then starting the next cutting cycle from that point saving time and energy. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Cutting head rotates 350°. Tools automatically retract when the cutting cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered cutting tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. U.S. Patents #6,206,663 and #6,065,326.

Modified Industry Description

CUTTER WIRE, LI, 45MM STD, 120V AC

AD Description

Greenlee® Gator® ESG45LX120 Guillotine Style Standard Wire Cutter With 120 VAC Charger, 18 VDC, Lithium-Ion Battery, Tool Only

Specifications

Application
ACSR, Guy Strand, Steel
Country of Origin
DE
Dimensions
13 in H x 3-1/8 in W
Finish
Black
Length1
23.0000
Series
ESG45LX
Special Features

  • Cutting head rotates 350 deg
  • Designed specifically to cut ACSR, guy strand and ground rods
  • Equipped with Bluetoothâ„¢ communication enabled via the Greenlee® Gator® eye app
  • Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real time tool feedback
  • Forward handle position improves tool balance
  • Guillotine style head
  • Handle angle supports decreased wrist deviation and increased grip strength
  • Hardened blades for increased longevity
  • LED light provides the operator with the battery charge and tool maintenance status
  • LED work light illuminates dark work areas
  • One trigger controls all tool functions
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • Retraction stop allows the operator to stop the ram retraction at any point simply by tapping the trigger and then starting the next cutting cycle from that point, saving time and energy
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • State of the art 18 V lithium-ion battery provides 70% more cycles per charge and faster cycle times
  • Tool automatically retracts when the cutting cycle is complete
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • Uses bio-degradable oil
Sub_Brand
Gator
Type
Guillotine Style Standard
Voltage Rating
18
