Greenlee Greenlee ESG50LX22


Description

Industry Description

Gator® ESG50L Battery Powered Cable Cutter with 230V Charger. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Used for cutting copper and aluminum power cables. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Retraction Stop allows the operator to stop the ram retraction at any point simply by tapping the trigger, and then starting the next cutting cycle from that point saving time and energy. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Cutting head rotates 350°. Tools automatically retract when the cutting cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered cutting tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. U.S. Patents #6,206,663 and #6,065,326.

Modified Industry Description

CUTTER CABLE, LI, 50MM STD, 230V

AD Description

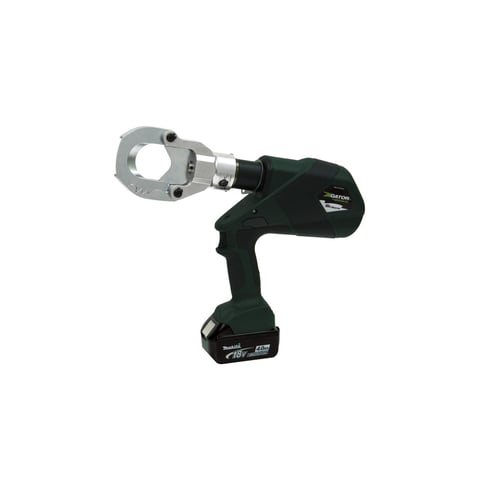

Greenlee® Gator® ESG50LX22 Scissor Style Standard Cable Cutter With 230 V Charger, 18 VDC, Lithium-Ion Battery, Tool Only

Specifications

Application
ACSR, Guy Strand, Steel
Country of Origin
DE
Dimensions
13 in H x 3-1/8 in W
Finish
Chrome
Length1
22.9000
Series
ESG50LX
Special Features

  • Cutting head rotates 350 deg
  • Equipped with Bluetoothâ„¢ communication enabled via the Greenlee® Gator® eye app
  • Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real time tool feedback
  • Forward handle position improves tool balance
  • Hardened blades for increased longevity
  • LED light provides the operator with the battery charge and tool maintenance status
  • LED work light illuminates dark work areas
  • One trigger controls all tool functions
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • Retraction stop allows the operator to stop the ram retraction at any point simply by tapping the trigger and then starting the next cutting cycle from that point, saving time and energy
  • Scissor style blades are easy to fit around cables
  • Side handle enhances operator control
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • State of the art 18 V lithium-ion battery provides 70% more cycles per charge and faster cycle times
  • The ESG50L is used for cutting copper and aluminum power cables
  • Tool automatically retracts when the cutting cycle is complete
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • Uses bio-degradable oil
Sub_Brand
Gator
Type
Scissor Style Standard
Voltage Rating
18
