Greenlee Greenlee EK1550LXB


Description

Industry Description

Gator® 15-Ton Battery-Powered Crimping Tool bare tool. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy. LED light provides the operator with the battery charge and tool maintenance status. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. Interchangeable adapters permit the use of a wide variety of crimping dies. Accepts Kearney PH4/P14 dies without adapter. Assist handle is included to provide better balance for the tool. Head will allow crimping of 8 AWG - 1000 KCMIL (MCM) Color Coded Copper and Aluminum Lugs and Splices.

Modified Industry Description

CRIMPER, 15T LI, STD, BARE

AD Description

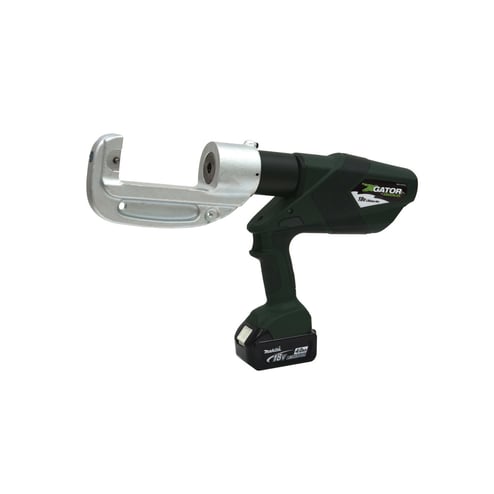

Greenlee® Gator® EK1550LXB EK1550LX Cordless Standard Die Crimper, 1000 kcmil Aluminum/Copper Crimping, 15 ton Crimping, 18 V, Li-Ion Battery, 18-1/2 in OAL

Specifications

Application
15 Ton Crimping
Conductor Size
8 AWG - 1000 Kcmil Cu & Al
Country of Origin
DE
Dimensions
3-1/8 in W x 13-1/2 in H
Length1
22.8000
Series
EK1550LX
Special Features

  • Accepts Kearney PH4/P14 dies without adapter
  • Assist handle is included to provide better balance for the tool
  • Automatic retraction stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger
  • Crimping head rotates 350 deg
  • Equipped with Bluetooth™ communication enabled via the Greenlee® Gator® eye app
  • Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real time tool feedback
  • Forward handle position improves tool balance
  • Greenlee® battery powered crimping tools now use bio-degradable oil
  • Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • Interchangeable adapters permit the use of a wide variety of crimping dies
  • LED light provides the operator with the battery charge and tool maintenance status
  • LED work light illuminates dark work areas
  • One trigger controls all tool functions
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • State of the art 18 V lithium-ion (lithium-ion) battery provides 70% more cycles per charge and faster cycle times
  • Tools automatically retract when the crimping cycle is complete
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
Standard
C/US UL Listed
Sub_Brand
Gator
Type
Cordless Standard
Voltage Rating
18
