Cooper Wiring Cooper Wiring TRSGFH15W


Description

Industry Description

GFCI TR HG Self Test Duplex 15A 125V WH 4740053

AD Description

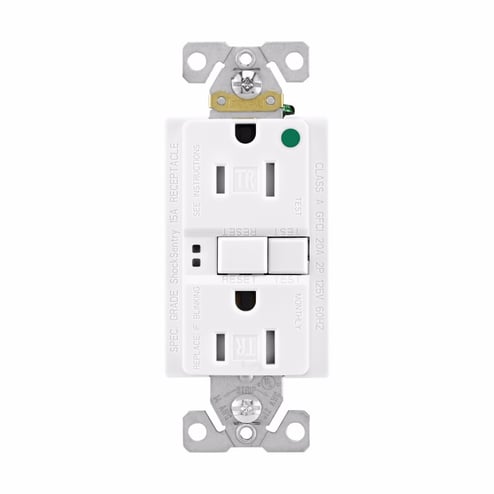

EATON Arrow Hart® TRSGFH15W Duplex Grounding Outlet Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White

Specifications

Amperage Rating
15 A
Application
GFCI
Country of Origin
CN
Dimensions
2.8130 X 2.0000 X 4.6250
Environmental_Conditions
Tamper resistant
Length1
2.8130
Special Features

  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Horizontal test/reset button alignment provides larger unobstructed area
  • Large visual trip indicator light gives quick notification of a tripped or "end of life" condition
  • Line side terminals are backed out and staked for fast installation
  • Line/load miswiring protection, ShockSentry GFCI’s will not provide power downstream when wired incorrectly
  • Meets and exceeds 10 kA short circuit testing and underwriters laboratories UL 943 safety standards
  • Performs periodic self tests to ensure integrity of GFCI protection if no ground fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
  • Tamper resistant shutters resist the insertion of foreign objects
  • Tapered backwire openings handle multiple wire sizes and types for applications up to 10 AWG stranded/solid wire
  • Test and reset buttons are color matched to provide superior aesthetics
  • Tri combo head terminal and mounting screws
  • When downstream receptacles are wired from load side, a 20 A feed through rating offers full protection
Standard
cULus Listed,NOM
Sub_Brand
Eaton Wiring Devices
Type
Industrial
Voltage Rating
125V
