Cooper Wiring Cooper Wiring AH5362CRY


Description

Industry Description

Recp Dup CR 20A 125V 2P3W B/Swire YL 4720444

AD Description

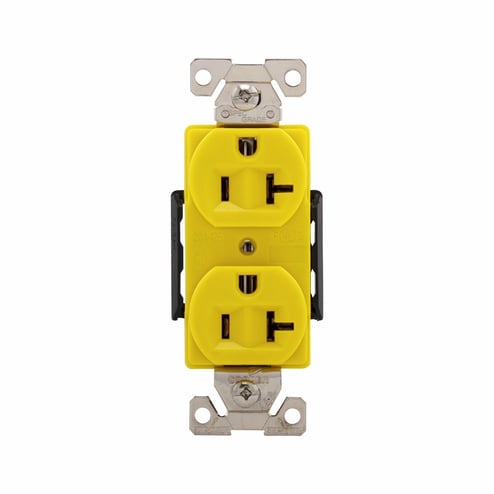

EATON Arrow Hart™ Eaton Wiring Devices AH5362CRY Corrosion-Resistant Duplex Premium Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Vendor Description

Industrial specification grade straight blade receptacles - corrosion-resistant premium industrial grade 20 A, 125 VAC, NEMA 5-20R. built to defy the potentially damaging effects of moisture, humidity and other corrosive elements, Arrow Hart™ corrosion-resistant devices are listed to UL 498 and Federal Specification W-C-596 to provide a dependable connection regardless of the application environment.

Specifications

Application
INDUSTRIAL RECEPTACLES
Country of Origin
MX
Dimensions
1.3200 X 0.8800 X 4.1900
Length1
1.3200
Special Features

  • 0.05 in (1.27 mm) solid brass mounting strap with non-riveted, integral 1-piece grounding system for highest durability assures superior ground integrity under heaviest use
  • 14 to 10 AWG wire terminal
  • All terminal and mounting screws Triple-combination (slot/Phillips®/Robertson) head for maximum installer flexibility
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Exclusive 5-leaf solid brass line contacts provides consistent performance and superior plug retention
  • Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
  • Flush mounting
  • Long, broad mounting strap helps reach large panel cut-outs for code compliance
  • Nylon face, glass filled nylon base
  • Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
  • Screw catch feature on duplex devices speeds mounting of wallplates
  • Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
Standard
Federal Specification Classification W-C-596F,UL,NOM,RoHS Compliant
Sub_Brand
Eaton Wiring Devices
Type
Industrial
