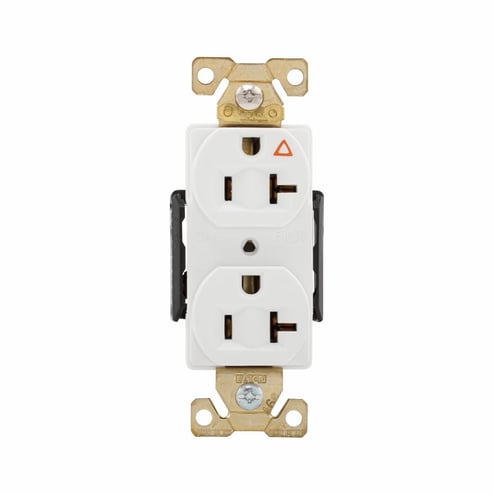

Cooper Wiring Cooper Wiring AHIG5362W


Description

Industry Description

20A 125V ISOLATED GROUND 4547584

Modified Industry Description

20A 125V - WHITE ISOLATED DUPLEX RECEPTACLE, 2 POLE, 3 WIRE INDUSTRIAL GRADE

AD Description

EATON Arrow Hart™ Eaton Wiring Devices AHIG5362W Isolated Ground Premium Single Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Vendor Description

Industrial specification grade straight blade receptacles - isolated ground premium 20 A, 125 VAC, NEMA 5-20R. designed from the inside out, these receptacles meet and exceed the UL 498 and Federal Specification W-C-596 standards to withstand the most abusive environments and excel in applications that demand the highest levels of performance.

Specifications

Amperage Rating
20
Application
Industrial Grade
Brand Name
Cooper Wiring
Color
White
Connection
SCREW
Conductor Size
14 To 10 AWG
Country of Origin
MX
Dielectric_Strength
125 Vac
Environmental_Conditions
Industrial Grade
Grade
Industrial/Specification
Insulation
Nylon Face, Glass Filled Nylon Base
Material
Glass Filled Nylon
Mounting
Flush
NEMA_Rating
NEMA 5-20R
Number_Of_Poles
2
Number_Of_Wires
3
Size
0.82 In Depth X 4.19 In Height
Special Features

  • 0.05 in (1.27 mm) solid brass plated steel mounting strap with non-riveted, integral 1-piece grounding system for highest durability assures superior ground integrity under heaviest use
  • 14 to 10 AWG wire terminal
  • All terminal and mounting screws Triple-combination (slot/Phillips®/Robertson) head for maximum installer flexibility
  • Exclusive 5-leaf solid brass line contacts provides consistent performance and superior plug retention
  • Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
  • Flush mounting
  • Long, broad mounting strap helps reach large panel cut-outs for code compliance
  • Nylon face, glass filled nylon base
  • Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
  • Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
Standard
UL
Sub_Brand
Eaton Wiring Devices
Temperature_Rating
-4 to 158
Type
Isolated Grounding Premium Single
Voltage Rating
125
