Cooper Wiring Cooper Wiring TWRSGF20V


Description

Industry Description

GFCI TWR Self Test Duplex 20A 125V IV 4743023

AD Description

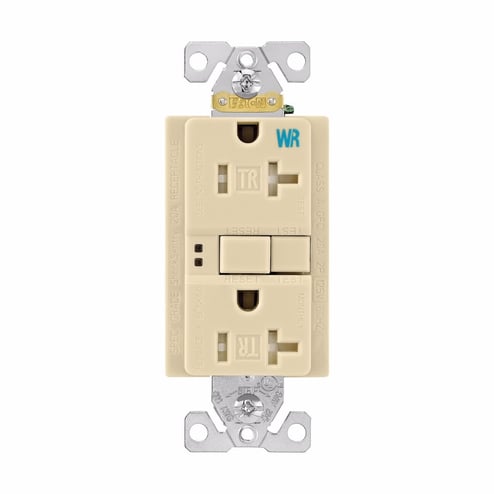

Eaton Wiring Devices TWRSGF20V Tamper/Weather-Resistant Duplex GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory

Specifications

Amperage Rating
20 A
Application
GFCI
Country of Origin
CN
Dimensions
2.2100 X 2.9100 X 4.5100
Environmental_Conditions
Tamper and weather resistant
Length1
2.2100
Special Features

  • 0.025 s (class A) trip time
  • 0.025 seconds (class A) trip time
  • 0.047 in thick steel, zinc plated strap, 0.03 in thick brass line contacts
  • 0.047 in THK steel, zinc plated strap, 0.03 in THK brass line contacts
  • 14 to 10 AWG terminal accommodation
  • 14 to 10 AWG wire
  • 20 A maximum interrupting capacity
  • Brass/nickel plated steel terminal screw, brass plated steel terminal clamps, ground screw green
  • Brass/nickel-plated steel terminal screw, brass plated steel terminal clamps, ground screw green
  • Exclusive built-in wire stripper provides fast stripping of wire without tools
  • Full rated current current interrupting
  • Full rated current interrupting
  • Line-load miswiring protection GFCIs will not provide power downstream when wired incorrectly
  • Line/load miswiring protection GFCIs will not provide power downstream when wired incorrectly
  • Longer, wider "bridge" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
  • Longer, wider bridged strap provides 40% more contact area with wallboard, virtually eliminating floating installations
  • Maximum 30 deg C after 100 cycles of overload at 150 percent of rated current (DC) temperature rise
  • Maximum 30 deg C after 100 cycles of overload at 150% of rated current (DC) temperature rise
  • Meets and exceeds 10 kA short circuit testing
  • Meets and exceeds 10 kA short circuit testing and underwriters laboratories (UL) 2006 UL943 safety standards
  • Meets and exceeds 10 kA short circuit testing and underwriters laboratories UL 943 safety standards
  • Performs periodic self tests to ensure integrity of GFCI protection if no ground fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
  • Tamper and weather resistant
  • Tapered backwire openings handle multiple wire sizes and types for applications up to 10 AWG solid or stranded wire
  • Tapered backwire openings handle multiple wire sizes and types for applications up to 10 AWG stranded/solid wire
  • Test and reset buttons are color matched to provide superior aesthetics
  • Thermoplastic, polypropylene top housing, thermoplastic, PVC bottom housing
  • Tri combo head mounting and terminal screws
  • Tri-combo head terminal and mounting screws
  • When downstream receptacles are wired from load side, a 20 A feed through rating offers full protection
  • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
  • Withstands 2000 VAC per UL 498 dielectric voltage
  • Withstands 2000V per UL498 dielectric voltage
Standard
cULus Listed
Sub_Brand
Eaton Wiring Devices
Type
Commercial
Voltage Rating
125V
