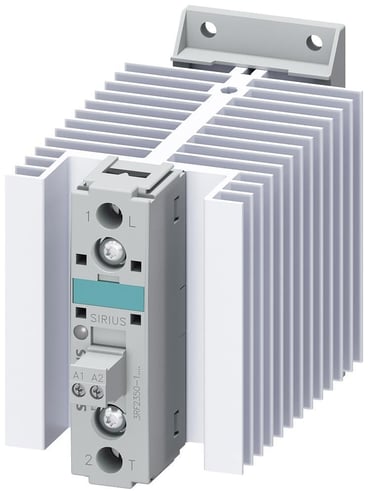

Siemens Siemens 3RF2350-1BA04


Description

Industry Description

Solid State Contactor,SIRIUS SC 1 Pole 50 Amps at 230 VAC to 460 VAC 24 VDC Coil DIN Rail or Panel Mount Screw Terminals 22.5 mm Relay Width 67 mm Heat Sink Width Instantaneous Switching UL File E143112 in Vol.1 Sec.8

AD Description

SIRIUS 3RF2350-1BA04 1-Phase Instantaneous Switching Solid State Contactor, 24 VDC Coil, 25 A, 1NO, 1 Pole

Vendor Description

The solid state contactors for switching motors are intended for frequently switching on and off 3-phase current operating mechanisms up to 7.5 kW and reversing up to 3 kW. The devices are constructed with complete insulation and can be mounted directly on SIRIUS motor starter protectors, overload relays and current monitoring relays, resulting in a very simple integration into motor feeders. These 3-phase solid state contactors are equipped with a two-phase control which is particularly suitable for typical motor current circuits without connecting to the neutral conductor.

Specifications

Country of Origin
DE
Length1
4.1800
Special Features

  • Compact and space saving design
  • Compact and space-saving design
  • Complete units comprising a solid state relay and an optimized heat sink, ready to use
  • Expandable functionality through plug-on function modules
  • Extremely durable, low-maintenance, rugged and reliable thanks to long switching service life
  • Flexible for all applications with function modules for retrofitting
  • Insulated enclosure with integrated heat sink
  • Integrated mounting foot to snap on a standard mounting rail or for assembly onto a support plate
  • Plug-in control connection
  • Reversing contactors with integrated interlocking
  • Saves time and costs with fast mounting and commissioning, short start up times and easy wiring
  • Solid state contactor is specifically matched to inductive loads
  • Wear and noise-free switching also for noise-sensitive areas
