Siemens Siemens 44707-02FL

Name: Siemens 44707-02FL
Brand: Siemens
SKU: 3255871
Price: 2097.06 USD
Availability: InStock

Siemens 44707-02FL

Kirby Risk #: 3255871

UPC: 78364318070, 783643180703, 00783643180703

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Siemens

Description

Industry Description

320A 7J RGLS 1POS LVRBPS MS OH/UG-SW

Modified Industry Description

320A 600V - 7 TERMINAL RINGLESS LEVER BYPASS RINGLESS METER SOCKET, 3 PHASE, 4 WIRE

AD Description

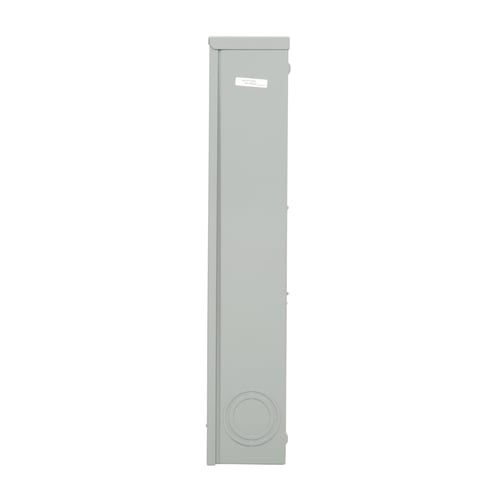

TALON® 44707-02FL Type HQD 1-Position Continuous Duty Meter Socket With Lever Bypass, Coverplate, 600 VAC, 320 A, 3 ph Phase, NEMA 3R Enclosure

Amperage Rating	320
Brand Name	Siemens
Cable_Entry	OH/UG
Country of Origin	MX
Enclosure	Steel
Frequency_Rating	False
Mounting	SURFACEMOUNTING
Number_Of_Cutouts	9
Special Features	1/2-20 stud terminal connector 100% rated lever bypass with clamping action on meter Constructed of 14 ga galvannealed steel with polyester powder finish Factory installed lug or 3/8 in stud connection Lever operated jaw release, moving lever up closes bypass and unclamps meter blade Meter blade to jaw terminal arcing is eliminated, the cover cannot be replaced with lever in bypassed position Offset design for easier UG wiring also overhead rated Plated copper current path Silver brazed connection Single phase meter, the insert rejects normal width terminal blade, yet admits the Talon class 320 narrower upper right hand blade Terminals are 3/8 or 1/2 in cold headed zinc-plated steel stud with nuts and captive belleville washer to accommodate various pressure type lug The insert is field installable but cannot be removed in the field Track resistant transparent polycarbonate insulating safety shield and fiber insulating barriers provide protection from accidental shorts and shocks
Standard	UL
Width_2	40.0000
