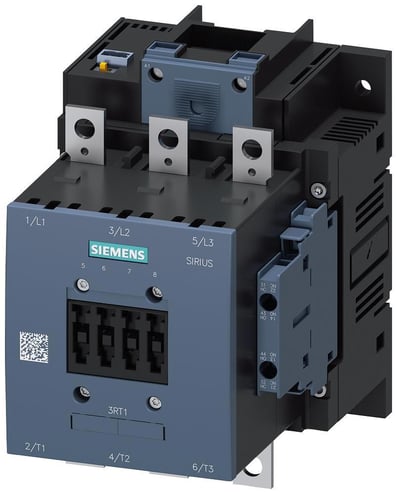

Siemens Siemens 3RT1054-6NP36


Description

Industry Description

Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 200 - 277 AC/DC Coil Frame Size S6,115A Panel Mount 2 NO ( & ) 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 5

Modified Industry Description

CONTACTOR S6 115A 200-277VUC 3P BAR

AD Description

SIRIUS 3RT1054-6NP36 Standard IEC Contactor, 200 VAC/277 VDC Coil, 115 A, 3NO, 3 Poles

Specifications

Country of Origin
DE
Dimensions
172 mm H x 120 mm W x 170 mm D
Frequency_Rating
50/60
Length1
5.0800
Mounting_Type
Panel
Number_Of_Poles
3
Operating_Temperature
-25 to 60
Power_Factor
0.8 Closing/0.6 Holding
Size
Size S6
Special Features

  • 0.8 at 50 Hz (closing), 0.5 at 50 Hz (holding) power factor
  • 10000000 of the contactor/typical, 10000000 of the contactor with added auxiliary switch block/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block/typical 1/hr
  • 280 VA at 50 Hz (pick-up), 4.4 VA at 50 Hz (holding) magnet coil at AC, 320 W (closing), 2.8 W (holding) magnet coil at DC
  • Without suppression lugs
Type
Standard
Wattage
55
