Hubbell Hubbell SNAP8300WTRA


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Tamper Resistant, Duplex, SNAPConnect 2, Hospital Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, White

Modified Industry Description

20A 125V - WHITE TAMPER RESISTANT DUPLEX RECEPTACLE, SNAPCONNECT, HOSPTIAL GRADE, 2 POLE, 3 WIRE

AD Description

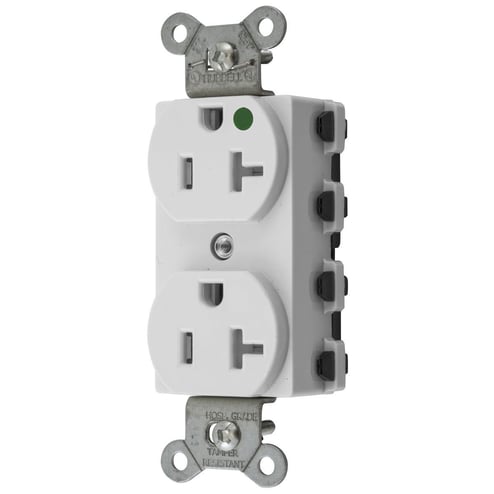

Wiring Device-Kellems SNAPConnect® SNAP8300WTRA Duplex Extra Heavy Duty Standard Tamper Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Vendor Description

SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.

Specifications

Amperage Rating
20
Application
Traditional Face
Brand Name
Hubbell
Color
White
Connection
Terminal Screws
Conductor Size
#12 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Composite
Mounting
Mounting Screws
NEMA_Rating
5-20R
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized Product
Special Features

  • Abuse resistant nylon for extra heavy use applications
  • Audible SNAP, indicates solid connection
  • Clear polycarbonate terminal housing to inspect contacts
  • Fully insulated design
  • Modular wiring system eliminates screw terminals
  • Reduces installation time
  • Speeds installation and trim out
  • Stainless steel auto ground
Standard
CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Sub_Brand
Hubbell Wiring Device-Kellems
Type
USB and Power
Voltage Rating
125
Wattage
2500
