General Cable General Cable C0723A.41.10


Description

Industry Description

Multi-Paired, Foil Shield UL 2464, NEC Type CM (UL) c(UL) or CMR (UL) c(UL), CSA CMG, 4P/22 7/30TC OA SH TYPE CMR, 1000' Reel

Modified Industry Description

4P/22 7/30TC OA SH TYPE CMR

AD Description

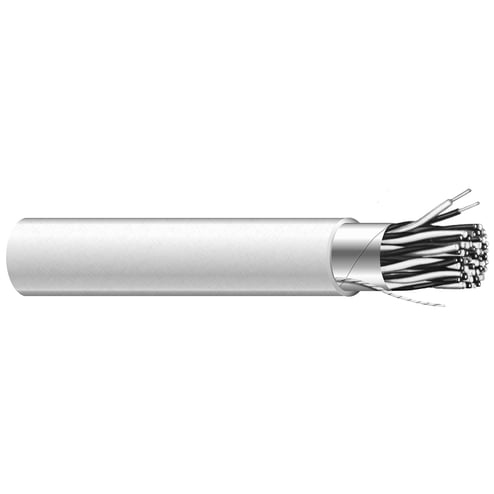

General Cable® Carol® C0723A.41.10 Type CMR/CMG Foil Shielded Multi-Paired Computer Cable, 300 VAC, (4) 22 AWG Fully Annealed Stranded Tinned Copper Conductor, 1000 ft Reel L

Vendor Description

Through its word-class manufacturing and engineering expertise, General Cable® offers a large spectrum of 600 V multi-conductor control and power cable constructions to meet your specific design requirements including our legacy brands of CVTC® Variable frequency Drive (VFD) shielded cable, VNTC® control and power cable, and FREP® control UL Type TC-ER cable.

Specifications

Application
Computers; industrial equipment; data transmission; control circuits; suitable for EIA RS-232 applications; suggested voltage rating: 300 volts
Color
Gray
Conductor Type
Fully Annealed Stranded Tinned Copper
Conductor Size
22
Country of Origin
USA
Length1
1000 ft Reel
Number Of Conductors
4
Outside_Diameter
0.269
Special Features

  • 0.01 in THK nominal insulation
  • 0.032 in THK nominal jacket
  • 100% Flexfoil® aluminum/polyester with 25% overlap, minimum, foil facing out shield
  • 25.7 conductor/7.2 shield Ohm/kft
  • 27.8 pF/ft capacitance between conductors, 50.1 pF/ft capacitance between one conductor and other conductors connected to shield
  • Assists system designers in meeting FCC docket 20780 demands
  • Fully annealed stranded tinned copper per ASTM B-33
  • Premium grade, color coded S-R PVC insulation
  • Stranded tinned copper drain wire
  • Superior shielding where noise rejection is critical
  • Twisted pairs
Standard
NEC Article 800 Type CMR; UL Style 2464; CSA CMG; RoHS Compliant Directive 2002/95/EC; Deisgned to meet UL 70,000 BTU Vertical Flame Test; Passes CSA CMG Flame Test
Sub_Brand
General Cable
Temperature_Rating
-20 to 80
Type
Type CMR/CMG Foil Shielded Multi-Paired
Voltage Rating
300
