Hoffman Hoffman HF1016414


Description

Industry Description

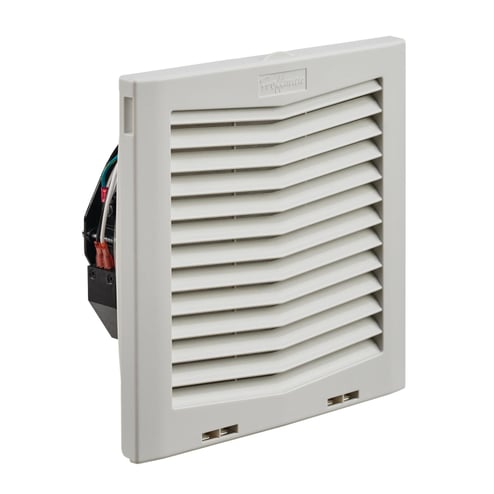

HF Side-Mount Filter Fans, Lt. Gray, ABS

Modified Industry Description

159 CFM 120V - IP54 SIDE MOUNTING FILTER FAN

AD Description

Hoffman HF1016414 MCLF Filter Fan, 115 VAC, 0.38/0.36 A, 35/32 W, 159 cfm, NEMA 12/IP54 Enclosure

Vendor Description

HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.

Specifications

Amperage Rating
0.38/0.36
Application
Controls and Drives; Power Distribution
Brand Name
Hoffman
Color
Light Gray
Country of Origin
CN
Flow_Rate
159 CFM
Housing_Material
Non-metallic
Material
ABS
Size
10.13 X 10.14 X 4.68 in
Special Features

  • Click fit design quickly installs into enclosure wall, no tools or screws required
  • Hinged grille remains attached after opening
  • Opens with the flick of a finger for easy filter replacement
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Similar cutout sizes as other filter fan manufacturers
  • Standard rope gasket provides proper seal to the enclosure
  • Terminal block connections
Type
Open-Loop Cooling
Voltage Rating
115
