Hoffman Hoffman HF0916414


Description

Industry Description

HF Side-Mount Filter Fans, Lt. Gray, ABS

Modified Industry Description

70 CFM 120V - IP54 SIDE MOUNTING FILTER FAN

AD Description

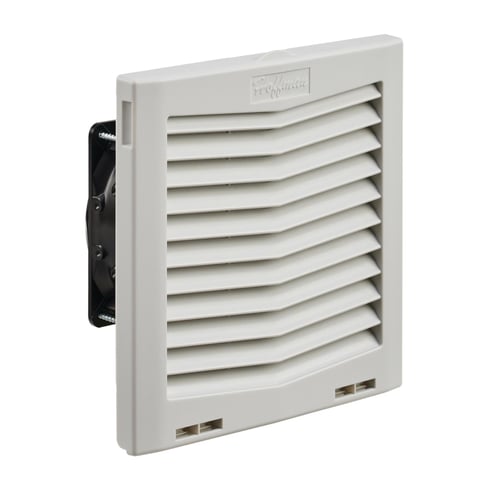

Hoffman HF0916414 MCLF Filter Fan, 115 VAC, 0.16/0.14 A, 11/10 W, 70 cfm, NEMA 12/IP54 Enclosure

Vendor Description

HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.

Specifications

Amperage Rating
0.16/0.14
Application
Controls and Drives; Power Distribution
Brand Name
Hoffman
Color
Light Gray
Country of Origin
CN
Flow_Rate
70 CFM
Housing_Material
Non-metallic
Material
ABS
Size
8.19 X 8.21 X 4.15 in
Special Features

  • Click fit design quickly installs into enclosure wall, no tools or screws required
  • Hinged grille remains attached after opening
  • Opens with the flick of a finger for easy filter replacement
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Similar cutout sizes as other filter fan manufacturers
  • Standard rope gasket provides proper seal to the enclosure
  • Terminal block connections
Type
Open-Loop Cooling
Voltage Rating
115
