Federal Signal Federal Signal SLM200B


Description

Industry Description

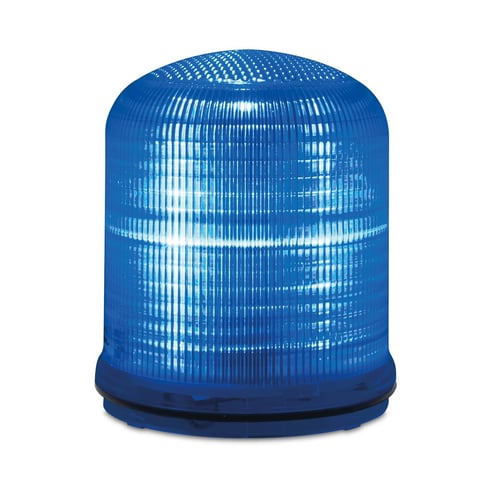

StreamLine Modular Multifunctional LED Beacon, Blue - Compatible with 12-24VAC/DC or 120-240VAC (a). PLC compatible with PNP or NPN connections (a). Three separate inputs: flashing, simulated strobe and random. 50,000 hour LED. Five lamp/lens colors: Amber, Blue, Clear, Green and Red. Seven mounting base options. Type 4X, IP66, IP69K (b) enclosure. CE Certified and RoHS Compliant. UL and cUL listed. (a) Voltage and PLC connections are dependent on selected base. (b) IP69K with SLMBS, SLMBD or SLMBP bases and SLM-RR retaining ring.

Modified Industry Description

12 24 V AC/DC 120 240 V AC STREAMLINE MODULAR LED BEACON AMBER

AD Description

Federal Signal StreamLine® SLM200B Low Profile Modular Multi-Functional Beacon, 12 to 24 VAC/VDC, 120 to 240 VAC, LED Lamp, Surface Mount, Blue, UL/cUL/cULus Listed, CE Certified

Vendor Description

Model SLM200 offers a multi-functional LED beacon with high optical performance. Developed with a multiple input technology, Model SLM200 allows three separate light effects (flashing, simulated strobe or random) controllable via independent electric contacts. The flashing light mode has a powerful effect ideal for attracting attention without alarming. If immediate attention is needed the simulated strobe is the ideal option. The random light pattern is unique in its ability to irregularly flash while drawing attention. Model SLM200 body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.

Specifications

Amperage Rating
Specific To Input Voltage
Application
Indoor/Outdoor
Color
Blue
Country of Origin
IT
Environmental_Conditions
-22 to 122
Length1
4.7500
Material
Plastic
Mounting
Surface/Wall/Pipe
NEMA_Rating
Type 4X, IP66, IP69K (Restrictions Apply) Enclosure
Operating_Temperature
-40D to +131DF (-40D to +55DC)
Size
4.23 H X 3.9 W X 3.9 D
Special Features

  • 150 fpm flash mode, 72 fpm strobe mode flash rate
  • 300 mA at 12 VDC, 150 mA at 24 VDC, 510 mA at 12 VAC, 360 mA at 24 VAC, 100 mA at 120 VAC, 70 mA at 240 VAC
  • PLC compatible with PNP or NPN connections
  • Three separate light effects

Standard
UL Listed/cUL Listed/CE Certified
Style
Flashing/Simulated Strobe/Random
Sub_Brand
Streamline
Type
Modular Multifunctional LED Beacon
Voltage Rating
12-24VAC-DC/120-240VAC
Wattage
Specific To Input Voltage
