NSI NSi GL256B
NSI GL256B
Kirby Risk #: 3183289
UPC: 66238103670, 662381036704, 00662381036704
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

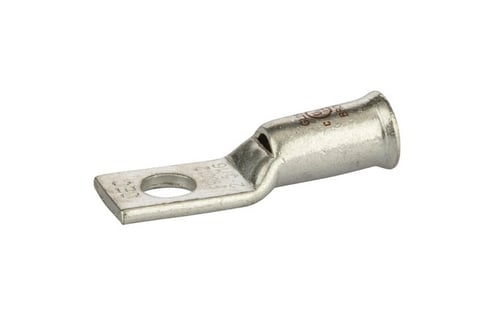

1 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable2 AWG- 5/16" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
Modified Industry Description
2 AWG CU COMPRESSION LUG 5/16IN
AD Description
NSI GL256B GL-B Series 1-Hole Compression Lug With Peep Hole, 2 AWG Stranded Conductor, 5/16 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Color |
Brown
|
| Country of Origin |
IND
|
| Environmental_Conditions |
90 C
|
| Finish |
Tin Plated
|
| Length1 |
1.8000
|
| Material |
Copper
|
| Mounting |
5/16 Mounting Hole
|
| Size |
L=1.80 - W=.600 - OD=.420 - ID=.310
|
| Special_Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Short Barrel - One Hole - Belled End
|
| Voltage Rating |
600
|
