Hubbell Hubbell SNAP2182RTRA
Hubbell SNAP2182RTRA
Kirby Risk #: 3176678
UPC: 78358555248, 783585552484
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Modified Industry Description

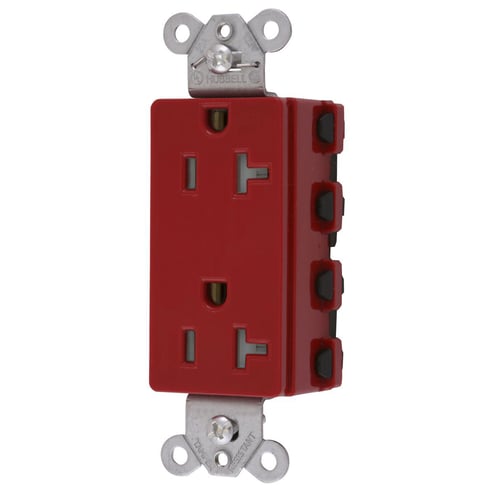

SNAPCONNECT DECO HG 20A/125V TR RD
Specifications
| Amperage Rating |
20.000000000000000
|
|---|---|
| Application |
Hospital Grade
|
| Color |
Red
|
| Connection |
Terminal Screws
|
| Conductor Size |
#12 AWG
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Length1 |
4.2000
|
| Material |
Nylon
|
| Mounting |
Mounting Screws
|
| NEMA_Rating |
5-20R
|
| Number_Of_Poles |
2
|
| Phase |
Single Phase
|
| Series |
SnapConnect Receptacles
|
| Size |
3.28 X 1.64 X 1.1
|
| Special Features |
Quick Connect- SNAPConnect®, Tamper-Resistant, USA Product
|
| Standard |
Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
|
| Type |
Tamper-Resistant
|
| Voltage Rating |
125
|
| Wattage |
2500
|
