Federal Signal Federal Signal SLM200A

Federal Signal SLM200A
Kirby Risk #: 3172504
UPC: 78297923237, 782979232377, 00782979232377
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Federal Signal
Description
Industry Description

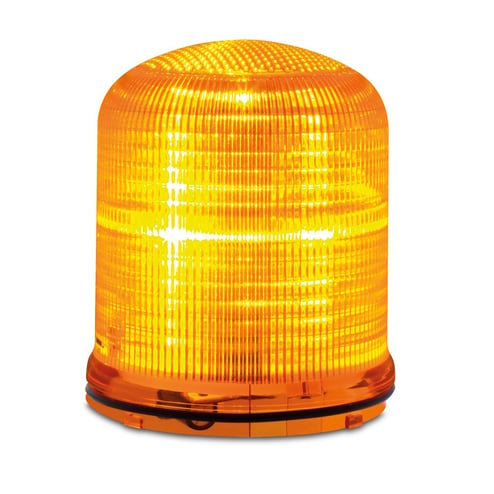

StreamLine Modular Multifunctional LED Beacon, Amber - Compatible with 12-24VAC/DC or 120-240VAC (a). PLC compatible with PNP or NPN connections (a). Three separate inputs: flashing, simulated strobe and random. 50,000 hour LED. Five lamp/lens colors: Amber, Blue, Clear, Green and Red. Seven mounting base options. Type 4X, IP66, IP69K (b) enclosure. CE Certified and RoHS Compliant. UL and cUL listed. (a) Voltage and PLC connections are dependent on selected base. (b) IP69K with SLMBS, SLMBD or SLMBP bases and SLM-RR retaining ring.
Modified Industry Description
12 24 V AC/DC 120 240 V AC STREAMLINE MODULAR LED BEACON AMBER
AD Description
Federal Signal StreamLine® SLM200A Low Profile Modular Multi-Functional Beacon, 12 to 24 VAC/VDC, 120 to 240 VAC, LED Lamp, Surface Mount, Amber, UL/cUL/cULus Listed, CE Certified
Vendor Description
Model SLM200 offers a multi-functional LED beacon with high optical performance. Developed with a multiple input technology, Model SLM200 allows three separate light effects (flashing, simulated strobe or random) controllable via independent electric contacts. The flashing light mode has a powerful effect ideal for attracting attention without alarming. If immediate attention is needed the simulated strobe is the ideal option. The random light pattern is unique in its ability to irregularly flash while drawing attention. Model SLM200 body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.
Specifications
| Amperage Rating |
Specific To Input Voltage
|
|---|---|
| Application |
Indoor/Outdoor
|
| Average_Life |
50,000
|
| Brand Name |
Federal Signal
|
| Color |
Amber
|
| Country of Origin |
IT
|
| Diameter |
3.9 (99.1mm)
|
| Environmental_Conditions |
-22 to 122
|
| Flashes_Per_Minute |
Flash Mode 150/Strobe Mode 72
|
| Label_Description |
STREAMLINE MODULAR LED LIGHT, MULTIFUNCTIONAL, FLASHING-STROBE-RANDOM, UL AND CUL, AMBER, BASE SOLD SEPARATELY
|
| Lens_Color |
Amber
|
| Material |
Plastic
|
| Model |
SLM200
|
| Mounting |
Surface/Wall/Pipe
|
| NEMA_Rating |
Type 4X, IP66 Enclosure
|
| Operating_Temperature |
-40D to +131DF (-40D to +55DC)
|
| Shape |
Cylindrical
|
| Size |
4.23 H X 3.9 W X 3.9 D
|
| Special Features |
|
| Standard |
UL Listed/cUL Listed/CE Certified
|
| Style |
Flashing/Simulated Strobe/Random
|
| Sub_Brand |
Streamline
|
| Type |
Modular Multifunctional LED Beacon
|
| Voltage Rating |
12-24/120-240
|
| Wattage |
Specific To Input Voltage
|
