Allen-Bradley Allen-Bradley 1756-IF8

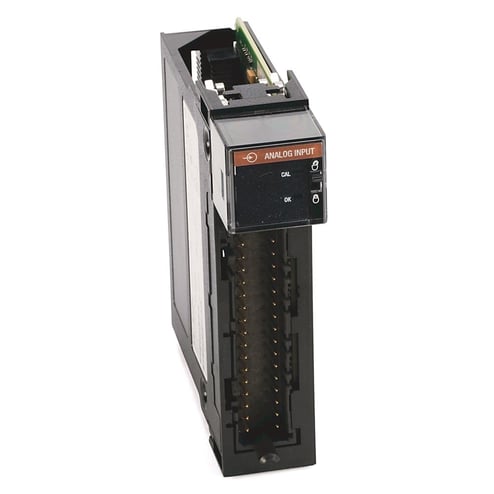

Allen-Bradley 1756-IF8
Kirby Risk #: 3170
UPC: 61259817179, 612598171798, 00612598171798, 10612598171795
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Allen-Bradley
Description
Industry Description
Input Module,ControlLogix,Analog,8 Point, 8 Single-Ended Inputs,4 Differential Inputs or 2 Differential High Speed Inputs,Current and Voltage
Modified Industry Description
CONTROLLOGIX ANALOG INPUT MODULE, 8 POINT
Specifications
| Application |
General Purpose I/O
|
|---|---|
| Brand Name |
Allen-Bradley
|
| Country of Origin |
MUL
|
| Display |
Module Health, In Calibration Mode
|
| Enclosure |
None (open-style)
|
| Input |
8
|
| Input_Signal |
0-10.25V, +/- 10.25V, 0-5.125V, 0-20.5mA
|
| Isolation |
250V (continuous), reinforced insulation type, inputs-to-backplane. No isolation between individual inputs
|
| Mounting |
Chassis
|
| Number_Of_Terminals |
8
|
| Operating_Temperature |
0...60 °C (32...140 °F)
|
| Output |
0
|
| Standard |
UL,CSA,CE,C-TICK,GOST,MARINE,NRTL,KC
|
| Sub_Brand |
Allen-Bradley
|
| Type |
Input Module
|
