Hubbell Hubbell HBLS430R12W


Description

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, Pin and SleeveDevices, Switched, IEC 309, Receptacle, 30A 125/250V, 3-Pole 4-WireGrounding, NEMA 4X/IP67, Watertight

AD Description

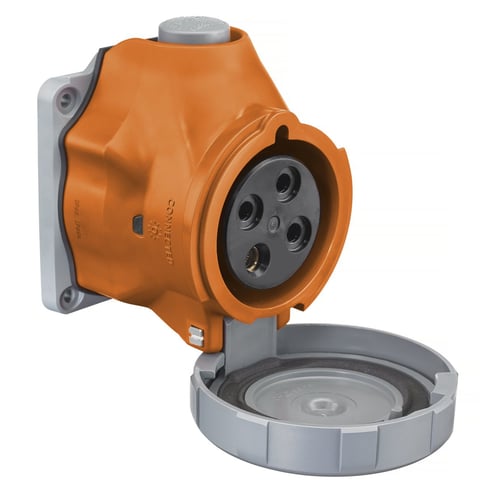

Wiring Device-Kellems HBL® Advantage™ HBLS430R12W Grounding Switch Rated Watertight Pin and Sleeve Receptacle, 250/125 VAC, 30 A, 3 Poles, 4 Wires, Orange

Vendor Description

The Advantage™ series has a UL witnessed IP69K and 4X, 12 environmental rating, two power indicating LED, continuous ground engagement, labelless laser markings and a compact and ergonomic design. Hubbell® pin and sleeve connections have always been safe - that hasn't changed. The Advantage™ series simply has more Advantage™s.

Specifications

Amperage Rating
30
Color
Orange
Country of Origin
PR
Length1
6.0000
Number_Of_Poles
3
Series
Advantage Switch-Rated
Special Features

  • Color coded by voltage for easy identification of mating devices
  • Device is built to withstand wet and harsh environments
  • Highly visible and long lasting green LED lights on both sides of the device provide visual verification of power when connected
  • Mates with existing installed base of IEC 60309-2 pin and sleeve devices
  • Product ratings are laser marked into the device and will not wash off for easy permanent identification
  • The ergonomic device is easy to keep clean making it ideal for hygienic food processing facilities
  • Unswitched feed-through ground pin is first to make and last to break followed by switched neutral and phase contacts
Type
Receptacle
Voltage Rating
125/250
