Hubbell Hubbell HBLS330R4W
Hubbell HBLS330R4W
Kirby Risk #: 3166474
UPC: 78358555038, 783585550381, 00783585550381
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Switched, IEC 309, Receptacle, 30A 125V, 2-Pole 3-WireGrounding, NEMA 4X/IP67, Watertight
AD Description

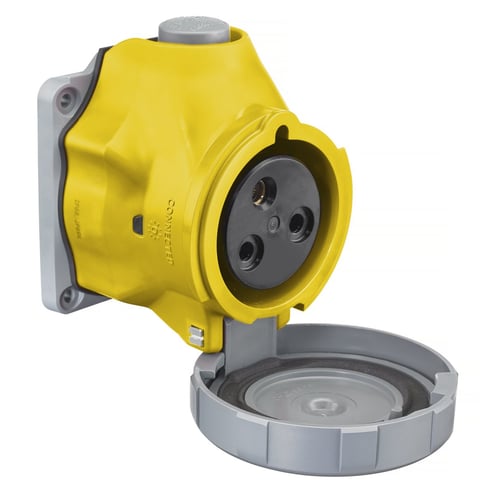

Wiring Device-Kellems Advantage™ HBLS330R4W Switched Watertight Pin and Sleeve Receptacle, 125 VAC, 30 A, 2 Poles
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
Industrial/Commercial
|
| Color |
Yellow
|
| Connection |
Pressure Screw Terminal
|
| Conductor Size |
#12AWG-#8AWG
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Watertight
|
| Length1 |
6.0000
|
| Material |
Brass/Non-Metallic
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Series |
Advantage Switch-Rated
|
| Size |
Standard Sized
|
| Special Features |
Switched
|
| Standard |
UL498, IEC60309
|
| Sub_Brand |
IEC 309 Pin and Sleeve
|
| Type |
Receptacle
|
| Voltage Rating |
125
|
| Wattage |
3750
|
