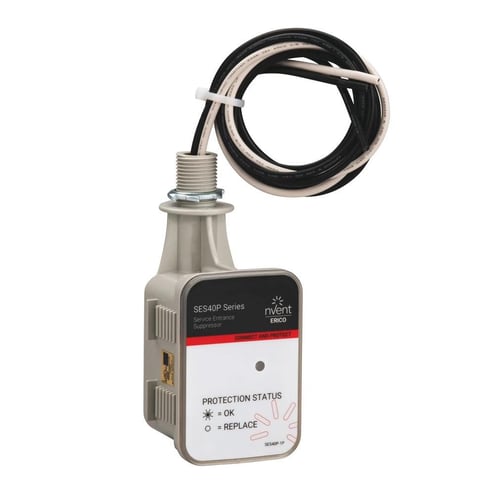

ERICO Erico SES40P120/240SP

Industry Description

Service Entrance Suppressor(P), 40 kA, 120/240 VAC Un

Modified Industry Description

Service Entrance Suppressor, 40KA, 120/240V, 1 Phase, 2-W-G

AD Description

ERICO® SES40P120/240SP Service Entrance Suppression, 120 to 240 VAC, 0 to 100 Hz, 200 kA SCCR

Vendor Description

The nVent ERICO® SES40P Series of Surge Protective Devices (SPD) provide economical protection against damaging transients and surge events. These Type 1 devices are UL® Listed to UL 1449 Edition 4 and cUL® Listed to CAN/CSA C233.1. This allows installations on the line or load side (Type 1 or Type 2) of the service panel in accordance with the NEC® 2014 or CAN/CSA C233.1 without the requirement for additional circuit breakers or fuses. Primary applications are service entrance, branch, commercial, industrial, and residential. Other applications include OEM panels, solar combiner boxes, UL 96A lightning protection installations and light pole applications. The housing is constructed of UV-stabilized thermoplastic and meets the UL 50 Type 4x rating, making it ideal for both indoor and outdoor applications. All of the models have a 20 kA nominal discharge current rating, the highest level recognized under the UL 1449 Edition 4 standard.
