Siemens Siemens 3RH21312BB40

Name: Siemens 3RH21312BB40
Brand: Siemens
SKU: 3158689
Price: 255.34 USD
Availability: InStock

Siemens 3RH21312BB40

Kirby Risk #: 3158689

UPC: 11209828100, 66264390652, 00662643906523

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Siemens

Description

Industry Description

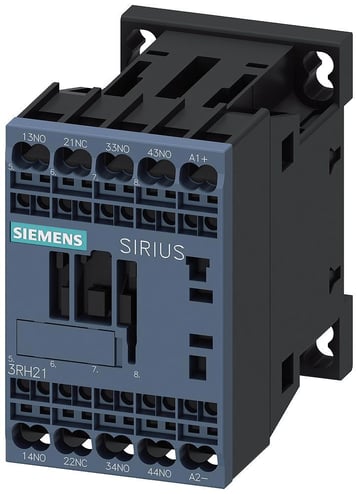

Contactor relay, 3NO+1NC, DC 24V, sz s00, spring-loaded terminal

Modified Industry Description

CONTACTOR RELAY 3NO+1NC DC 24V

AD Description

Siemens 3RH21312BB40 Contactor Relay, 3NO-1NC Contact, 24 VDC V Coil

Amperage Rating	10
Application	Contactor relay
Brand Name	Siemens
Contact_Configuration	1 NC, 3 NO
Contact_Rating	A600 / Q600
Country of Origin	DE
Environmental_Conditions	80 -55 C
Mounting	screw and snap-on mounting onto 35 mm standard mounting rail +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
Operating_Temperature	60.0 -25.0 C
Size	S00
Special Features	10 A at 230 VAC/3 A at 400 VAC/2 A at 500 VAC/1 A at 690 VAC AC-15, 10 A at 24 VAC/3 A at 110 VAC/1 A at 220 VAC/0.3 A at 440 VAC/0.15 A at 600 VAC DC-12 contact rating Depending on the version, the solenoid coils of the coupling contactor relays are supplied without overvoltage damping High contact stability at low voltages and currents RC elements, varistors, diodes or diode assemblies (combination of a diode and a Zener diode) can be plugged onto all 3RH2 contactor relays from the front for damping opening surges in the coil The auxiliary switch block can easily be snapped onto the front of the contactor relays
Sub_Brand	Siemens
Type	3RH2 Relay
Voltage Rating	24
