Siemens Siemens NGG2B040L
Siemens NGG2B040L
Kirby Risk #: 3158519
UPC: 78364341368
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

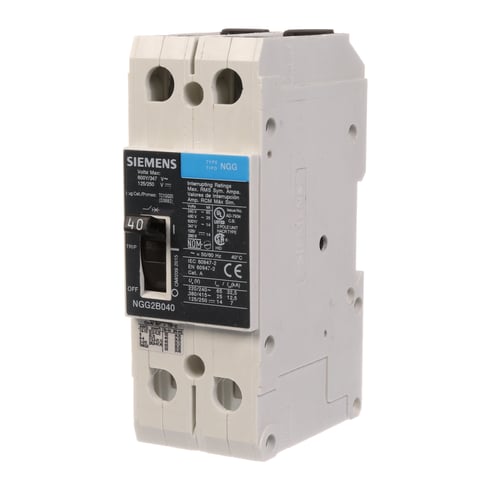

SIEMENS LOW VOLTAGE G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGG FRAME WITH STANDARD BREAKING CAPACITY. 40A 2-POLE (14KAIC AT 600Y/347V)(25KAIC AT 480V). SPECIAL FEATURES MOUNTS ON DIN RAIL / SCREW, LINE AND LOAD SIDE LUGS (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 2 x 5.4 x 2.8.
Modified Industry Description
2P 40A 480V 25KA LUGS
AD Description
Siemens NGG2B040L Type NGG Low Voltage Molded Case Circuit Breaker, 480 VAC, 40 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Specifications
| Amperage Rating |
40
|
|---|---|
| Country of Origin |
MX
|
| Dimensions |
6 in L x 3 in W x 4 in H
|
| Frame |
NGG/125A
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Length1 |
6.0000
|
| Mounting_Type |
DIN Rail
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Special Features |
|
| Standard |
UL/CSA/IEC/NOM
|
| Temperature_Rating |
40
|
| Type |
General Purpose Low Voltage
|
| Voltage Rating |
480
|
